1 Gang weatherproof Grey box with (3) 3/4" threaded outlets
Shipping calculated at checkout
SKU: 210-31011
216 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
1-Gang Die-Cast Metal Weatherproof Electrical Box — 3 × ¾″ Threaded Hubs | UL Listed | RoHS Compliant | Conversions Tech
The Conversions Tech 1-Gang Die-Cast Metal Weatherproof Electrical Box offers rugged, long-lasting protection for single-gang devices such as switches, GFCI outlets, and receptacles. Engineered for both indoor and outdoor applications, this enclosure withstands corrosion, impact, and environmental stress. Constructed from seamless die-cast aluminum alloy and powder-coated gray for UV and rust resistance, it integrates three ¾″ threaded hubs for flexible conduit entry.
Key Technical Specifications
| Material | Seamless Die-Cast Aluminum Alloy |
| Finish | Electrostatic Powder Coat, Gray (UV & Rust Resistant) |

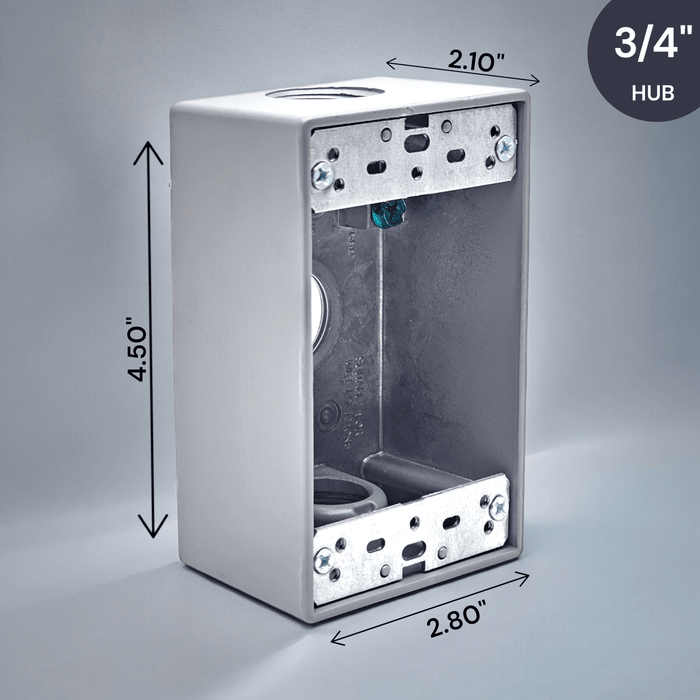

| Dimensions | 2.80″ × 4.50″ × 2.10″ (Depth) |
| Hub Size | ¾″ NPT (Compatible with Standard EMT/RMC Conduit) |
| Hub Count | 3 (Back + Two Sides) |
| Internal Volume | 18.3 in³ |
| Mounting | Integrated Lugs for Secure Surface Installation |
| Certifications | UL Listed • RoHS Compliant |
| Applications | Switches, GFCI Outlets, Receptacles, and Outdoor Lighting Fixtures |
| Origin | USA *Stock product may be sourced elsewhere. |
Installation Steps
- Select a stable surface for installation and mark the lug hole positions.
- Mount the box securely using corrosion-resistant screws through the lugs.
- Thread ¾″ conduit into the required hubs and tighten for a sealed connection.
- Pull conductors, connect wiring, and bond the ground wire to the internal ground screw.
- Install the desired switch, receptacle, or GFCI using the provided screws.
- Seal unused hubs with watertight plugs to maintain NEMA enclosure integrity.
Frequently Asked Questions (FAQs)
1. What material is used in the 1-Gang Weatherproof Box?
It is made of seamless die-cast aluminum alloy, offering excellent corrosion and impact resistance.
2. How many hubs does this box include?
The box features three ¾″ threaded hubs — one at the back and one on each side for flexible conduit entry.
3. Is this weatherproof box UL Listed?
Yes. It is UL Listed and RoHS Compliant for safe, code-approved electrical installations.
4. Can the box be used outdoors?
Absolutely. The powder-coated aluminum construction provides long-lasting durability in wet, damp, and outdoor environments.
5. What types of devices fit in this 1-gang box?
It accommodates standard single-gang devices such as switches, outlets, GFCIs, and other small electrical devices.
6. How should unused hubs be sealed?
Unused hubs should be closed with watertight plugs to maintain the box’s NEMA weatherproof integrity.
