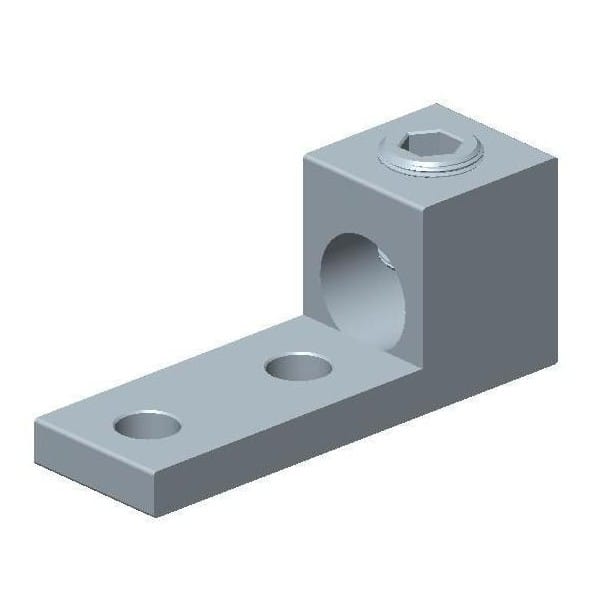

CT-T1H1-350-2NS Mechanical Lug, 1-Conductor, 2-Hole | 6 AWG to 350 kcmil, Tin-Plated 6061-T6 Aluminum, cULus
Shipping calculated at checkout
SKU: CT-T1H1-350-2NS
In stock
Open here
The CT-T1H1-350-2NS is a 1-conductor, 2-hole aluminum mechanical lug for 6 AWG to 350 kcmil conductors: a re-enterable set-screw termination for panelboards, switchgear, gutters, transformers and OEM equipment. Machined from 6061-T6 aluminum alloy, electro tin plated, with a chamfered wire entry; rated 90 °C and cULus Listed.
Specifications
| Catalog number | CT-T1H1-350-2NS |
| Conductors | 1 |
| Conductor range, each barrel | 6 AWG to 350 kcmil |
| Mounting holes | 2, ØF 0.56 in |
| Hole spacing (G) | 1.75 in |
| Set screw | 3/8 in hex socket |
| Material | 6061-T6 aluminum alloy, electro tin plated |
| Wire entry | Chamfered |
| Temperature rating | 90 °C |
| Listing | cULus Listed (manufacturer listing) |

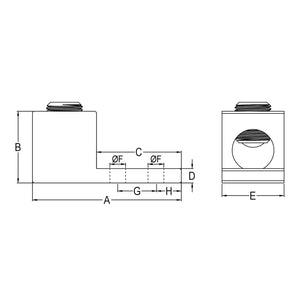

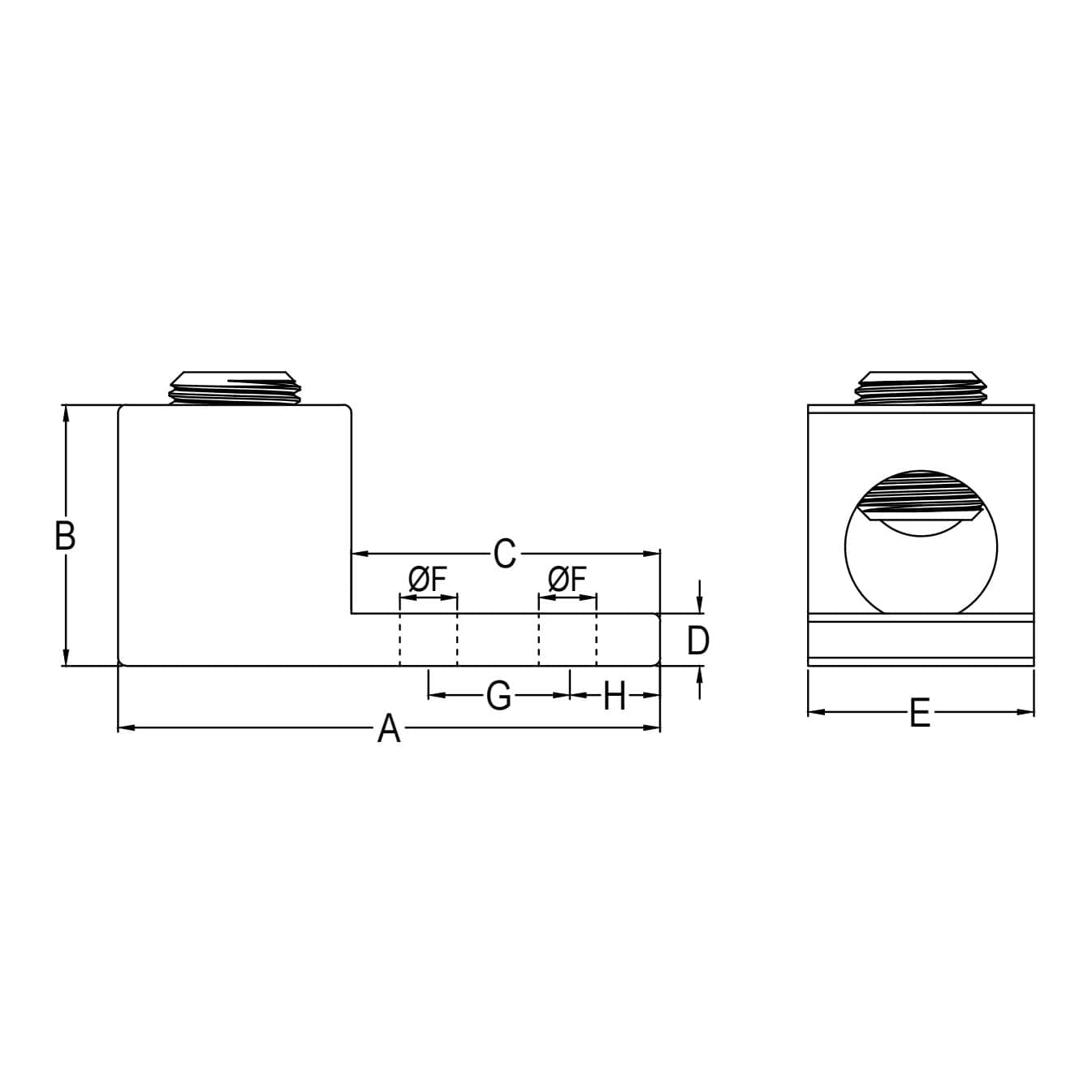

Dimensions (manufacturer drawing, inches)
| A | 4.310 in (109.5 mm) |
| B | 1.380 in (35.1 mm) |
| C | 3.000 in (76.2 mm) |
| D | 0.310 in (7.9 mm) |
| E | 1.130 in (28.7 mm) |
| F | 0.560 in (14.2 mm) |
| G | 1.750 in (44.4 mm) |
| H | 0.630 in (16.0 mm) |
A overall length · B height · C tongue length · D tongue thickness · E width · ØF mounting hole · G hole spacing · H hole to end.
Cross-Reference — 1-Conductor, 2-Hole, 6 AWG to 350 kcmil
| Manufacturer | Part Number | Basis |
|---|---|---|
| ILSCO | TA-350-2NS | Same class: 1 port, 2 holes, 350-6, 1/2 bolt, 1-3/4 in spacing (4-5/16 in long) |
| Burndy (Hubbell) | KKA31U2N | Same class: 1 cond, 2 holes, 6 AWG-350 kcmil, 1/2 stud, 1.75 in spacing, 5.50 in long |
| Blackburn (ABB) | ADR35-12 | Same class: 1 cond, 2 holes, 6 str-350, 1/2 bolt, 1-3/4 in NEMA |
| Panduit | LAMB350-12-6Y | Same class: 1 barrel, 2 holes, 6 AWG-350 kcmil, 1/2 stud hole, 1.75 in spacing, L 4.19 |
| Penn-Union | LA-350-2 | Same class: 1 cond, 2 holes, 6-350, 1-3/4 in centers, 9/16 in holes (1/2 bolt) |
Crosses by conductors, conductor range, hole count and stud from each manufacturer's published catalog. Confirm the range and stud for your application. Trademarks belong to their respective owners and are used for compatibility identification only.
