CT-T1H1-500-S Mechanical Lug, 1-Conductor, 1-Hole | one 4 AWG to 600 kcmil, or two 1/0 AWG to 250 kcmil, Tin-Plated 6061-T6 Aluminum, cULus
Shipping calculated at checkout
SKU: CT-T1H1-500-S
In stock
Open here

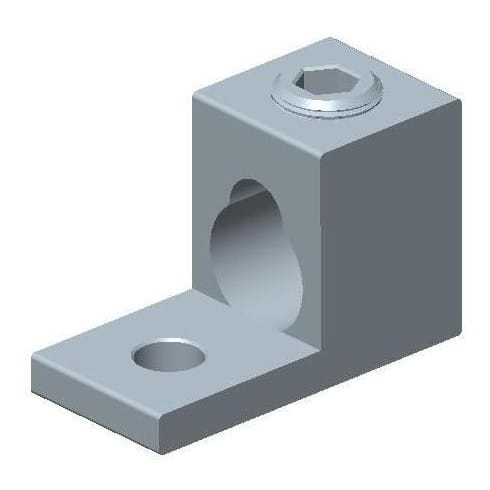

The CT-T1H1-500-S is a 1-hole aluminum mechanical lug that takes one 4 AWG to 600 kcmil conductor, or two 1/0 AWG to 250 kcmil conductors: a re-enterable set-screw termination for panelboards, switchgear, gutters, transformers and OEM equipment. Machined from 6061-T6 aluminum alloy, electro tin plated, with a chamfered wire entry; rated 90 °C and cULus Listed.
Specifications
| Catalog number | CT-T1H1-500-S |
| Conductor range | one 4 AWG to 600 kcmil, or two 1/0 AWG to 250 kcmil |
| Mounting holes | 1, ØF 0.41 in |
| Hole spacing (G) | single hole |
| Set screw | 1/2 in hex socket |
| Material | 6061-T6 aluminum alloy, electro tin plated |
| Wire entry | Chamfered |
| Temperature rating | 90 °C |
| Listing | cULus Listed (manufacturer listing) |

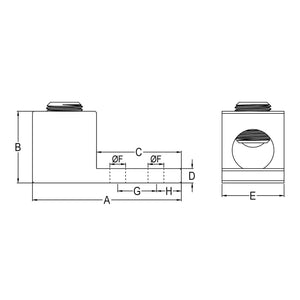

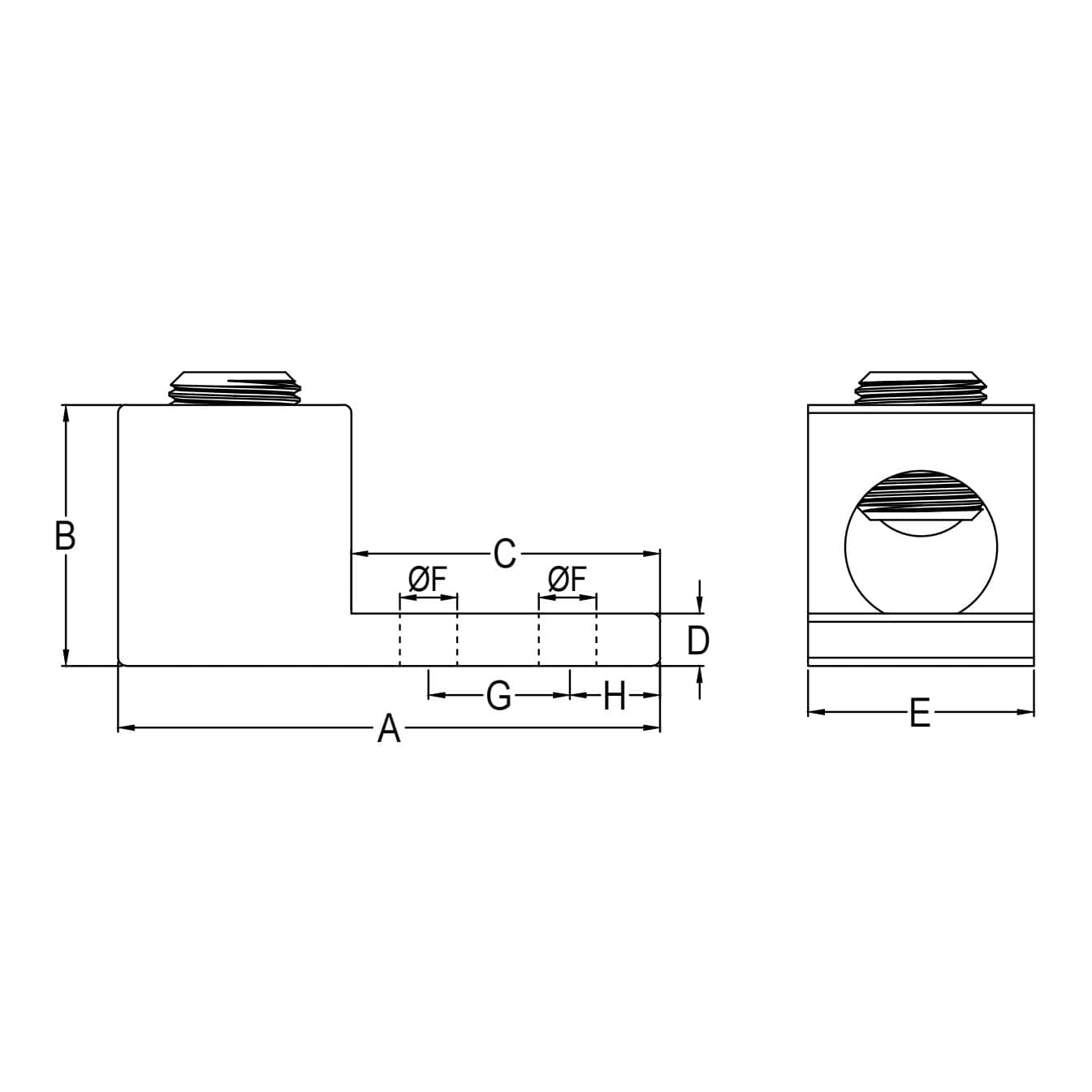

Dimensions (manufacturer drawing, inches)
| A | 2.810 in (71.4 mm) |
| B | 1.810 in (46.0 mm) |
| C | 1.500 in (38.1 mm) |
| D | 0.310 in (7.9 mm) |
| E | 1.290 in (32.8 mm) |
| F | 0.410 in (10.4 mm) |
| H | 0.630 in (16.0 mm) |
A overall length · B height · C tongue length · D tongue thickness · E width · ØF mounting hole · G hole spacing · H hole to end.
Cross-Reference — 1-Hole, one 4 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil
| Manufacturer | Part Number | Basis |
|---|---|---|
| ILSCO | TA-500-S | Same class: 1 hole, One: 600 kcmil-4; Two: 250 kcmil-1/0, 3/8 bolt |
| Burndy (Hubbell) | KA36229U | Same class: 4 AWG-600 kcmil or (2) 1/0-250 kcmil, 3/8 stud |
| Panduit | LAMA600S-38-6Y | Same class: 1 hole, 4 AWG-600 kcmil or two 1/0-250 kcmil, 3/8 stud hole |
| Blackburn (ABB) | ADR6004 | Same class: 1 hole, 600-4 str or (2) 250-1/0 str, 3/8; catalog marks it not UL listed or CSA certified |
Crosses by conductors, conductor range, hole count and stud from each manufacturer's published catalog. Confirm the range and stud for your application. Trademarks belong to their respective owners and are used for compatibility identification only.
