CT-T6H2-750 Panelboard Lug, 6-Conductor, 2-Hole | 1/0 AWG to 750 kcmil, Tin-Plated 6061-T6 Aluminum, cULus
Shipping calculated at checkout
SKU: CT-T6H2-750
In stock
Open here

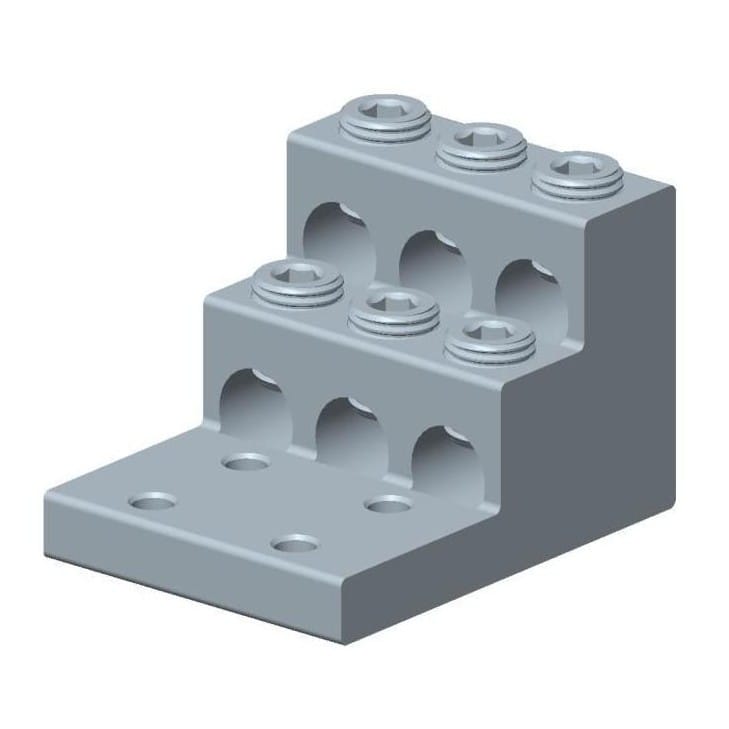

The CT-T6H2-750 is a 6-conductor, 2-hole aluminum panelboard lug for 1/0 AWG to 750 kcmil conductors: a re-enterable set-screw termination for panelboards, switchgear, gutters, transformers and OEM equipment. Machined from 6061-T6 aluminum alloy, electro tin plated, with a chamfered wire entry; rated 90 °C and cULus Listed.
Specifications
| Catalog number | CT-T6H2-750 |
| Conductors | 6 |
| Conductor range, each barrel | 1/0 AWG to 750 kcmil |
| Mounting holes | 2, ØF 0.56 in |
| Hole spacing (G) | 1.75 in |
| Set screw | 1/2 in hex socket |
| Material | 6061-T6 aluminum alloy, electro tin plated |
| Wire entry | Chamfered |
| Temperature rating | 90 °C |
| Listing | cULus Listed (manufacturer listing) |
Dimensions (manufacturer drawing, inches)
| A | 5.530 in (140.5 mm) |
| B | 3.000 in (76.2 mm) |
| C | 2.970 in (75.4 mm) |
| D | 0.750 in (19.0 mm) |
| E | 3.860 in (98.0 mm) |
| F | 0.560 in (14.2 mm) |
| G | 1.750 in (44.4 mm) |
| H | 0.630 in (16.0 mm) |
A overall length · B height · C tongue length · D tongue thickness · E width · ØF mounting hole · G hole spacing · H hole to end.
