Lightning Arrester Connector, Type LAT | Bronze, 3/8-16 Stud, Ground Lead 8 AWG to 2/0 | ILAT20
Shipping calculated at checkout
SKU: ILAT20
Only 5 in stock
Open here

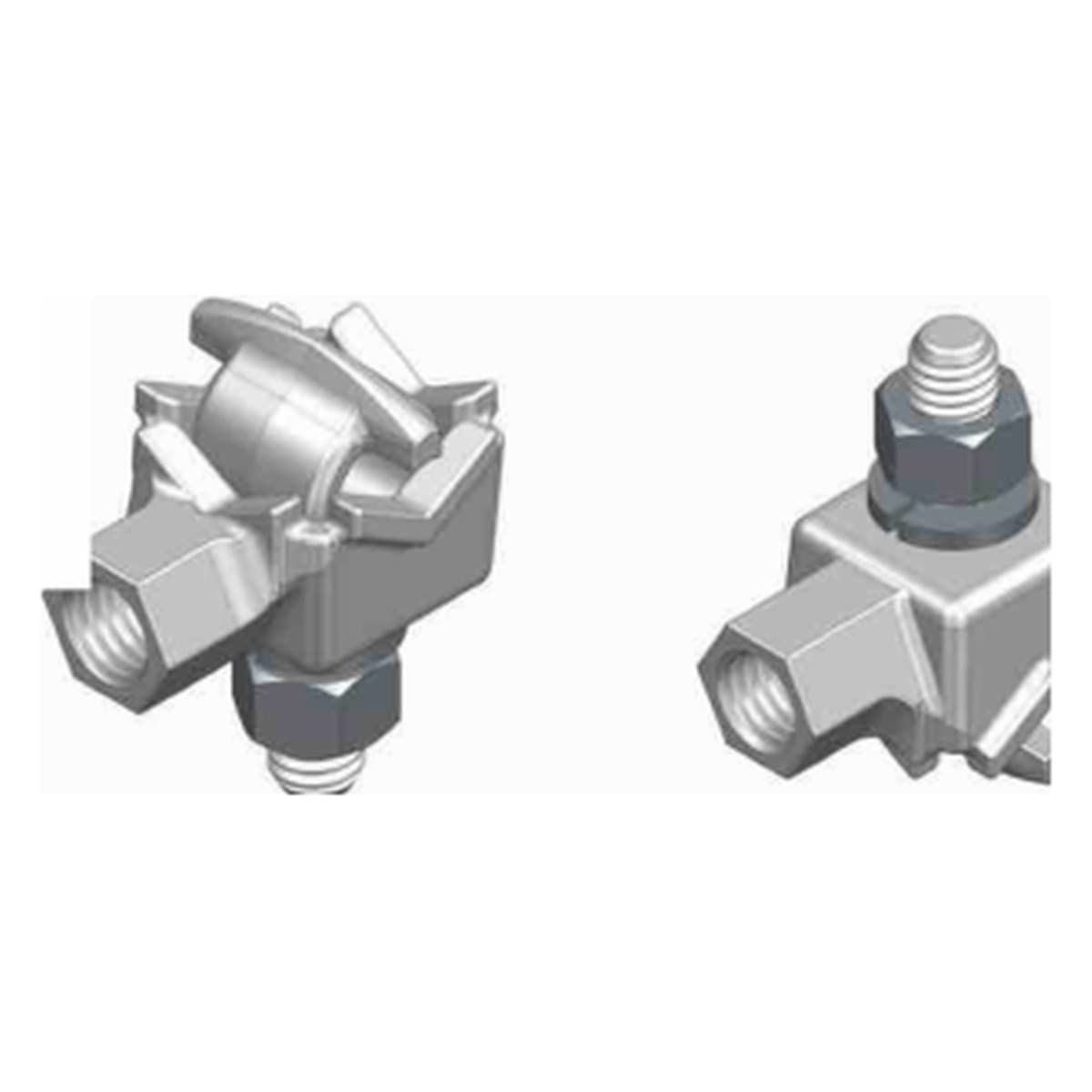

Versatile bronze connector that mounts directly to a drilled plate, structure, or bar using a 3/8″-16 cap screw, or threads onto a 3/8″-16 bushing stud secured by the included jam nut. The eyebolt repositions within the body for vertical or horizontal conductor entry. Accepts solid or stranded copper. Rated 600 V per NEMA CC1 and IEEE 837. Bronze, RoHS compliant.
| Cat. No. | Stud Size | Conductor Range O.D. | Wt / 100 lbs (kg) |
|---|---|---|---|
| ILAT20 | 3/8″-16 | #8 Sol. – 2/0 Str. (.12″ – .42″) | 40 (18) |
Ordering tip: pair ILAT20 with ITCL/ITCS tank ground clamps for a complete arrester-to-tank grounding path from one PO.
Specifications
| Part Number | ILAT20 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
