NEMA Steel Enclosure, 24 x 24 x 12'' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Juncti
Shipping calculated at checkout
SKU: -10001:-101#Default
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Electrical Enclosure Box — IP66 Carbon Steel Cabinet
The D0100H5ARAP electrical enclosure box is a heavy-duty IP66-rated junction cabinet engineered to protect sensitive electrical circuits and equipment from dust, water, oil, and corrosion. Built from 1.5 mm cold-rolled carbon steel with an epoxy polyester powder coating, this enclosure ensures durability, impact resistance, and long service life. Reinforced hinges, precision metal lock cores, pre-installed ground wire, and detachable backplate make installation secure and efficient for industrial and commercial applications.
Key Features

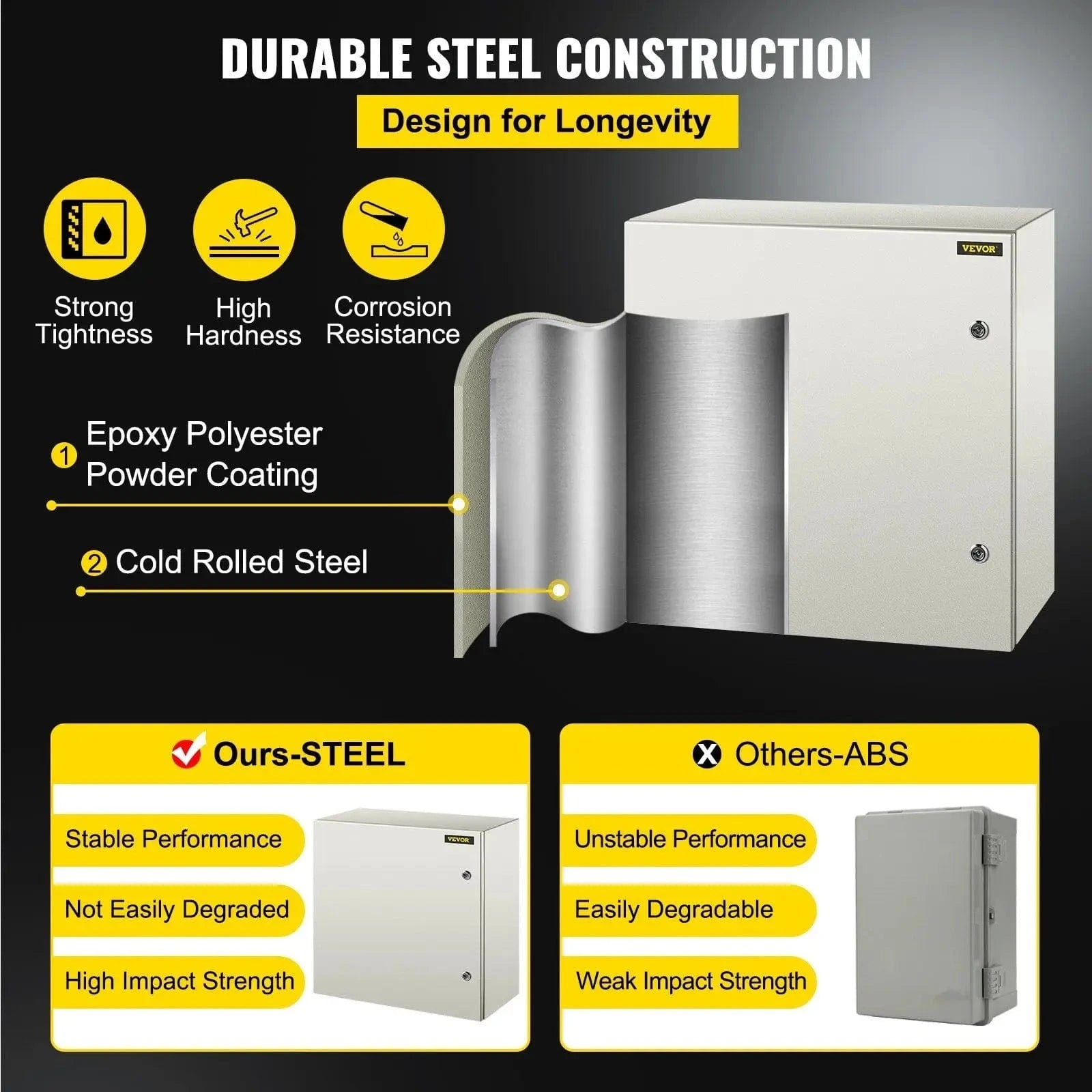

- Premium Steel Construction: 0.059"/1.5 mm cold-rolled steel with epoxy powder coating, corrosion-resistant.

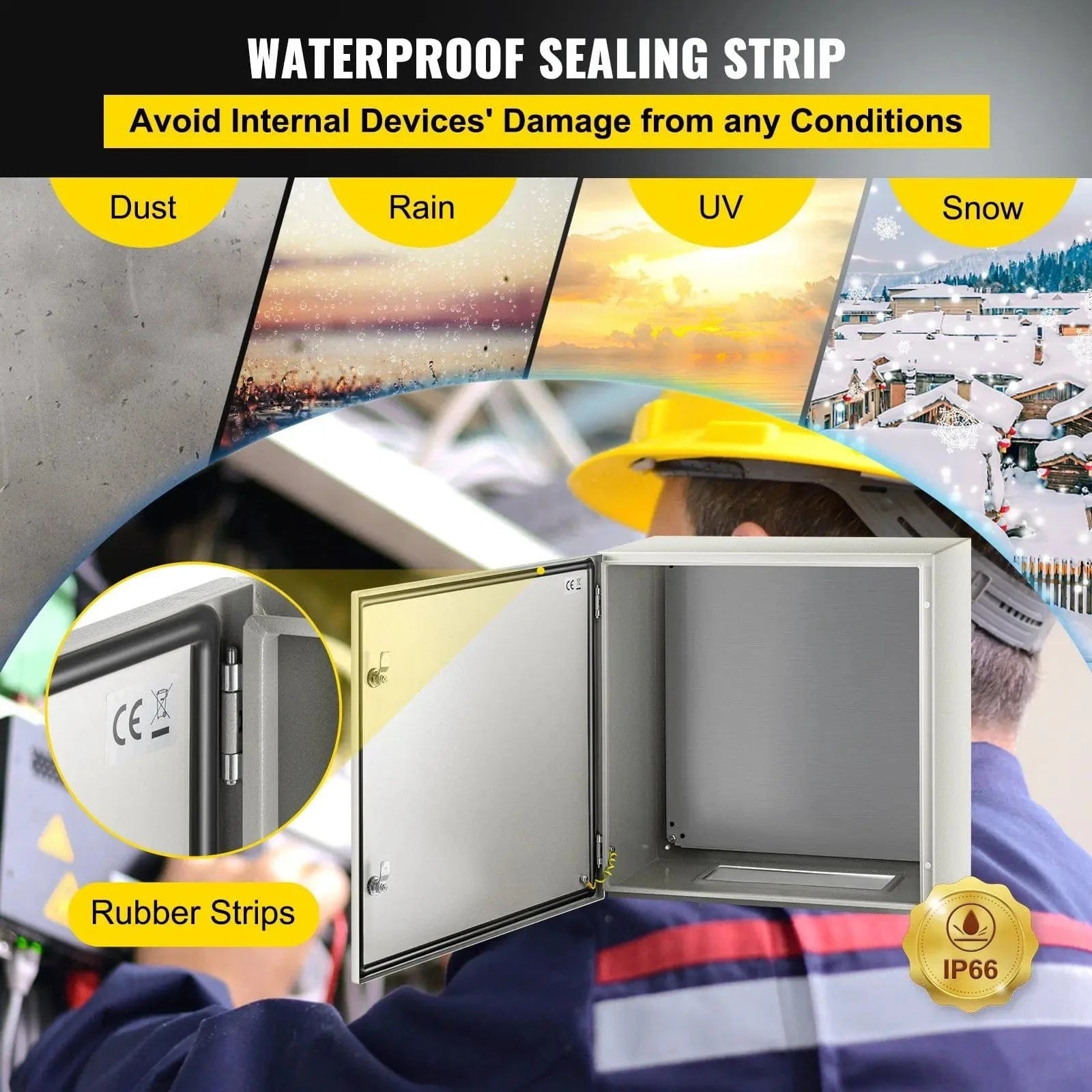

- IP66 Waterproof & Dustproof: Protects against rain, snow, moisture, dust, and oils, compliant with NEMA 1, 2, 4, 4X & 12 equivalents.

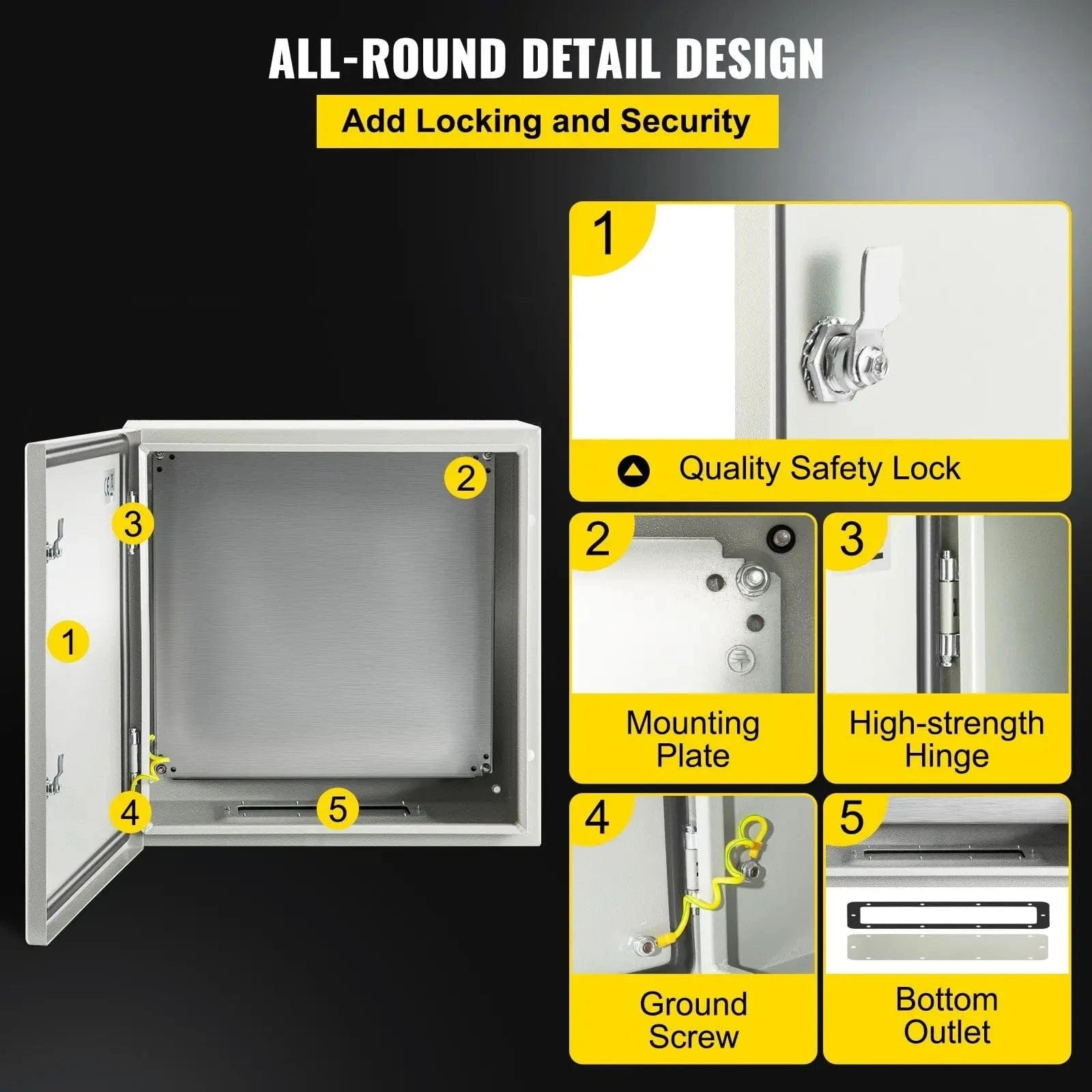

- Secure Locking: Reinforced lock and hinge system, metal lock core prevents tampering and ensures durability during repeated operation.

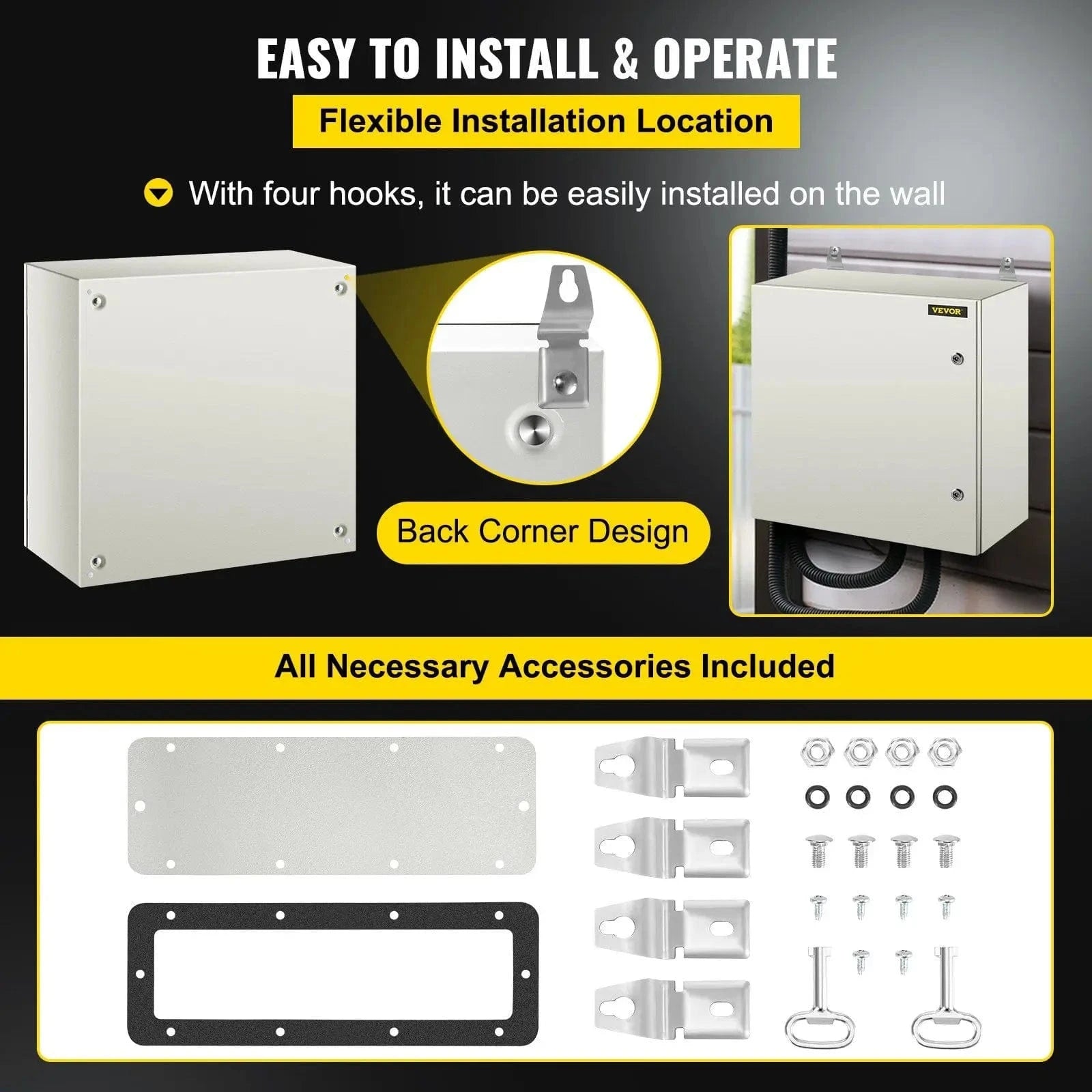

- Effortless Installation: 2 mm detachable galvanized backplate for mounting components, plus four pre-drilled wall-mount holes.
- Practical Design: Bottom outlet hole for cable management, rounded corners prevent cable damage, pre-installed ground wire.
- Wide Applications: Factories, construction sites, shopping malls, residential areas, courtyards, and outdoor equipment protection.
Technical Specifications
| Brand | VEVOR |
|---|---|
| Model Number | D0100H5ARAP (Default: D0102HRMZ38) |
| Material | 0.059"/1.5 mm Cold-Rolled Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079"/2 mm Detachable Galvanized Backplate |
| Outer Dimensions (H×W×D) | 24" × 24" × 12" / 60 × 60 × 30 cm |
| Inner Dimensions (H×W×D) | 23.5" × 23.5" × 10.5" / 59.7 × 59.7 × 26.65 cm |
| Backplate Dimensions | 21.7" × 21.7" / 55 × 55 cm |
| Product Weight | 54.23 lbs / 24.6 kg |
| IP Rating | IP66 • Designed to meet NEMA 1, 2, 4, 4X & 12 |
| Connection Type | Hinged, Lockable |
| Color | Gray White (RAL7035) |
| Certification | CE, RoHS |
| Features | Waterproof, Dustproof, Lockable, Reinforced Hinges |

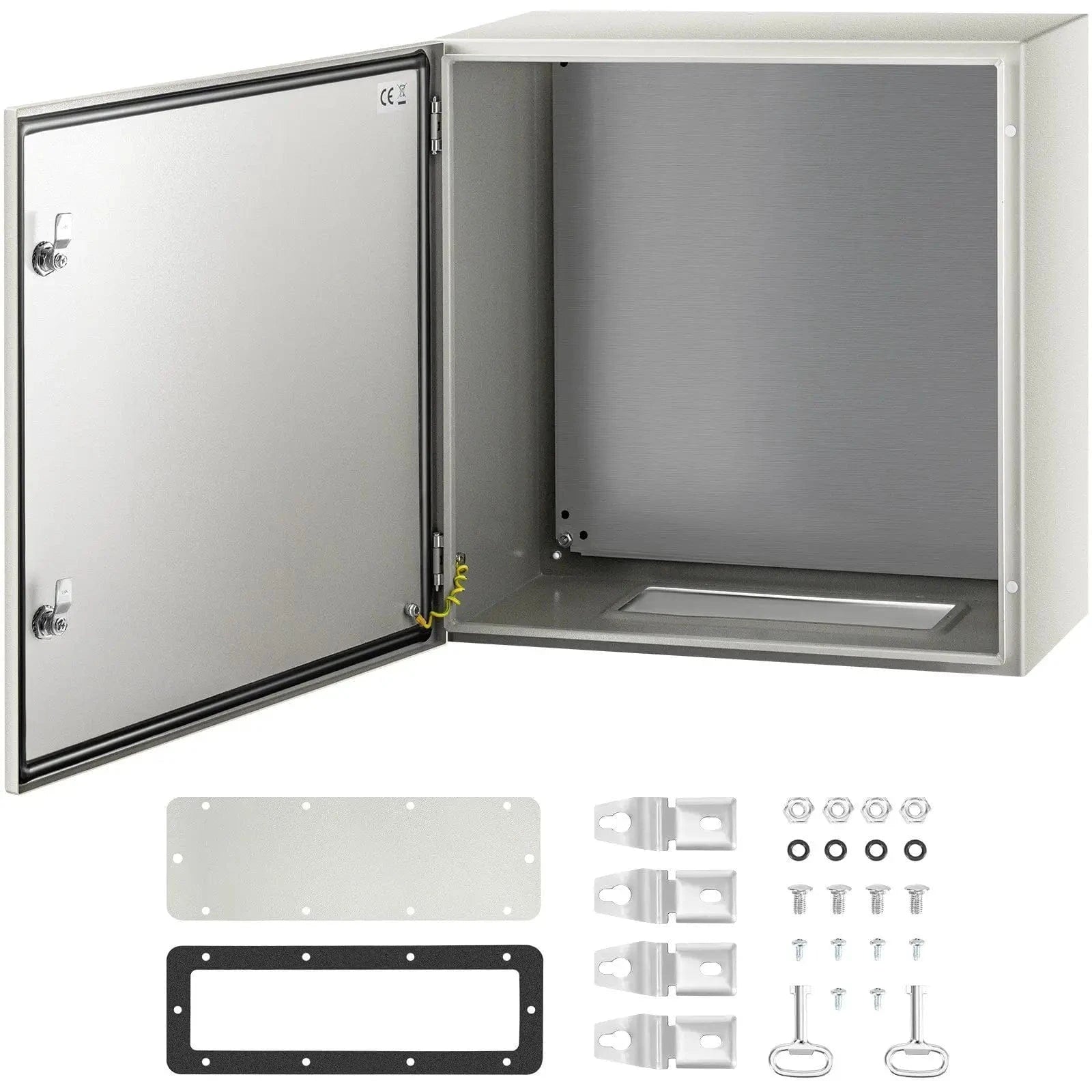

Package Contents
- 1 × Electrical Enclosure Box
- 2 × Keys
- 1 × Mounting Plate (assembled in box)
- 1 × Set of Wall Mounting Pendants
- 1 × Bottom Sealing Plate
Applications

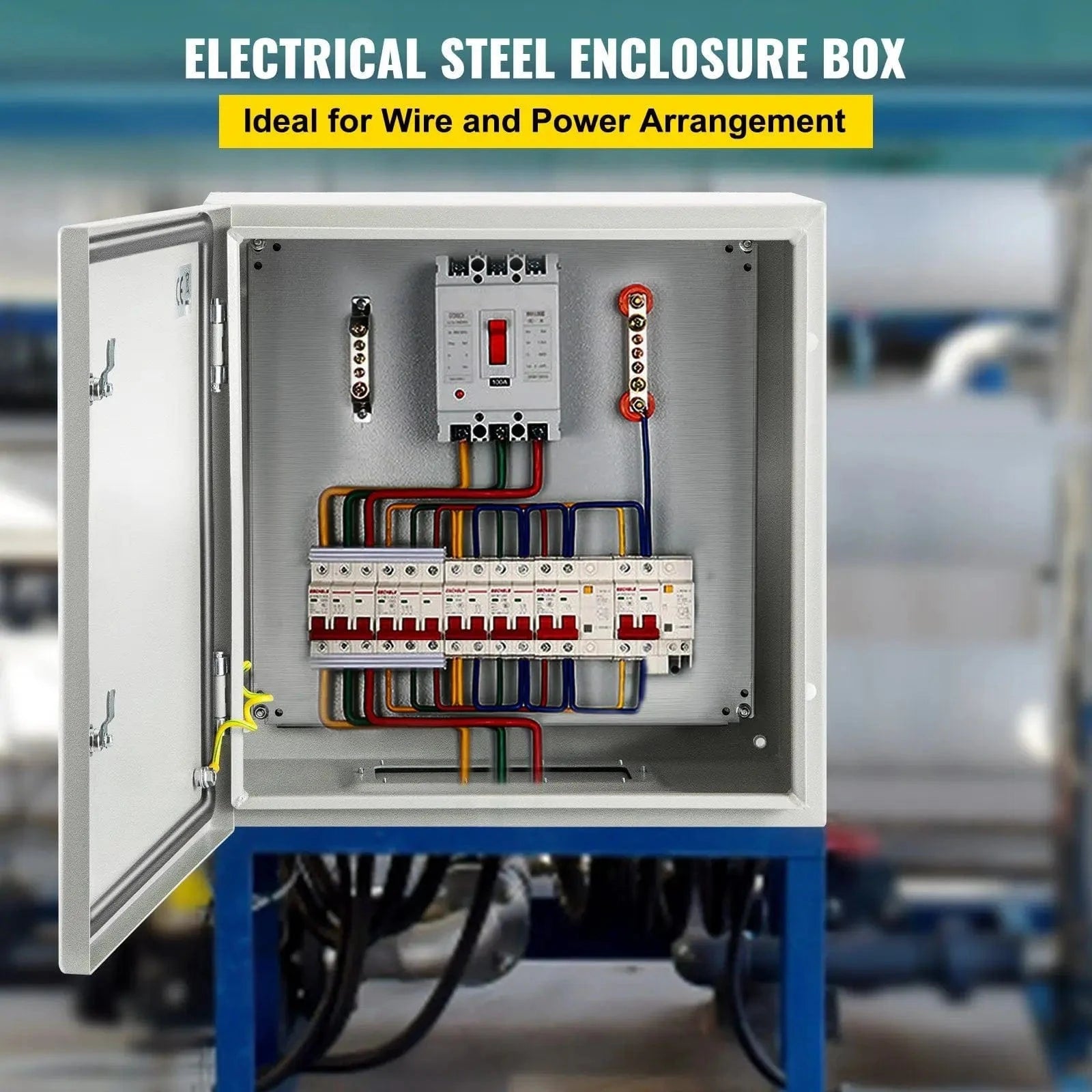

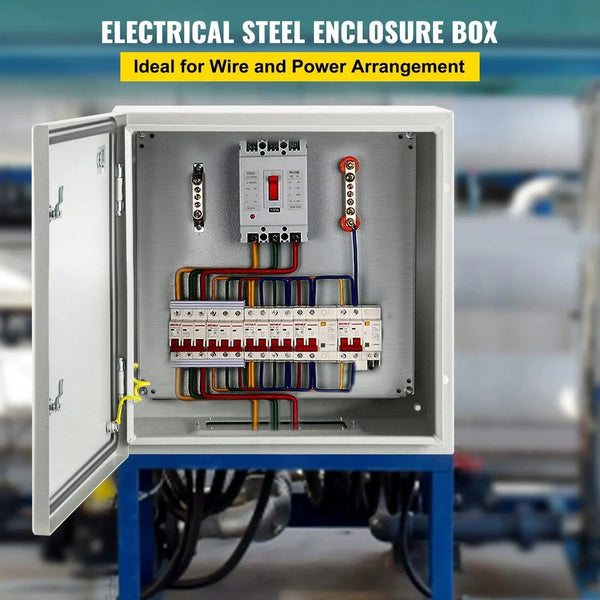

- Electrical junctions and circuit protection.
- Industrial automation, PCB, and terminal housing.
- Outdoor installations: shopping malls, courtyards, residential areas.
- Heavy-duty environments: factories, construction sites, and workshops.
FAQs
Q: What protection level does this box provide?
A: IP66 protection, equivalent to NEMA 4/4X, ensuring dustproof and protection against strong jets of water.
Q: What material is used?
A: 1.5 mm cold-rolled carbon steel with epoxy polyester powder coating for corrosion resistance.
Q: How is it installed?
A: Comes with a 2 mm galvanized detachable backplate and four mounting holes for secure wall mounting.
Q: Does it include a lock?
A: Yes. Reinforced lock core with keys included; lock prevents key removal when open for safety.
Q: What certifications does it have?
A: Certified to CE and RoHS standards for safety and environmental compliance.
