NPT Cable Gland, 3/4 in, Nylon IP68, Black | Strain Relief, 0.28 to 0.55 in Cable, UL 94 V-2, Locknut Included | 9889-0034
Shipping calculated at checkout
SKU: 9889-0034
Only 5 in stock
Open here
Overview
Conversions Tech™ CT-NPT-34
A full-size ¾-inch NPT nylon cable gland engineered for high-capacity power and control cables. The moulded PA-6 housing is halogen-free, UV-stabilised and flame rated UL-94 V-2, while a CR/NBR compression sleeve and EPDM O-ring lock in an IP-68 / NEMA 6P seal. From rooftop PV combiner boxes to industrial VFD drives, CT-NPT-34 keeps dust, water and vibration outside the enclosure—so installations stay maintenance-free even at −40 °C or +105 °C. :contentReference[oaicite:0]{index=0}
Key Features
- IP-68 / NEMA 6P — rated to 5 m submersion for 30 minutes.
- UL-94 V-2 PA-6 body — corrosion-proof, halogen-free and UV-stable.
- Wide temperature window — −40 °C → +105 °C continuous operation.
- Self-locking ratchet threads defeat vibration on gensets, pumps and mobile gear.
- Supplied ready-to-install with lock-nut and sealing washer.
- ANSI/ASME B1.20.1 NPT taper • CE-marked • RoHS compliant.
Typical Applications

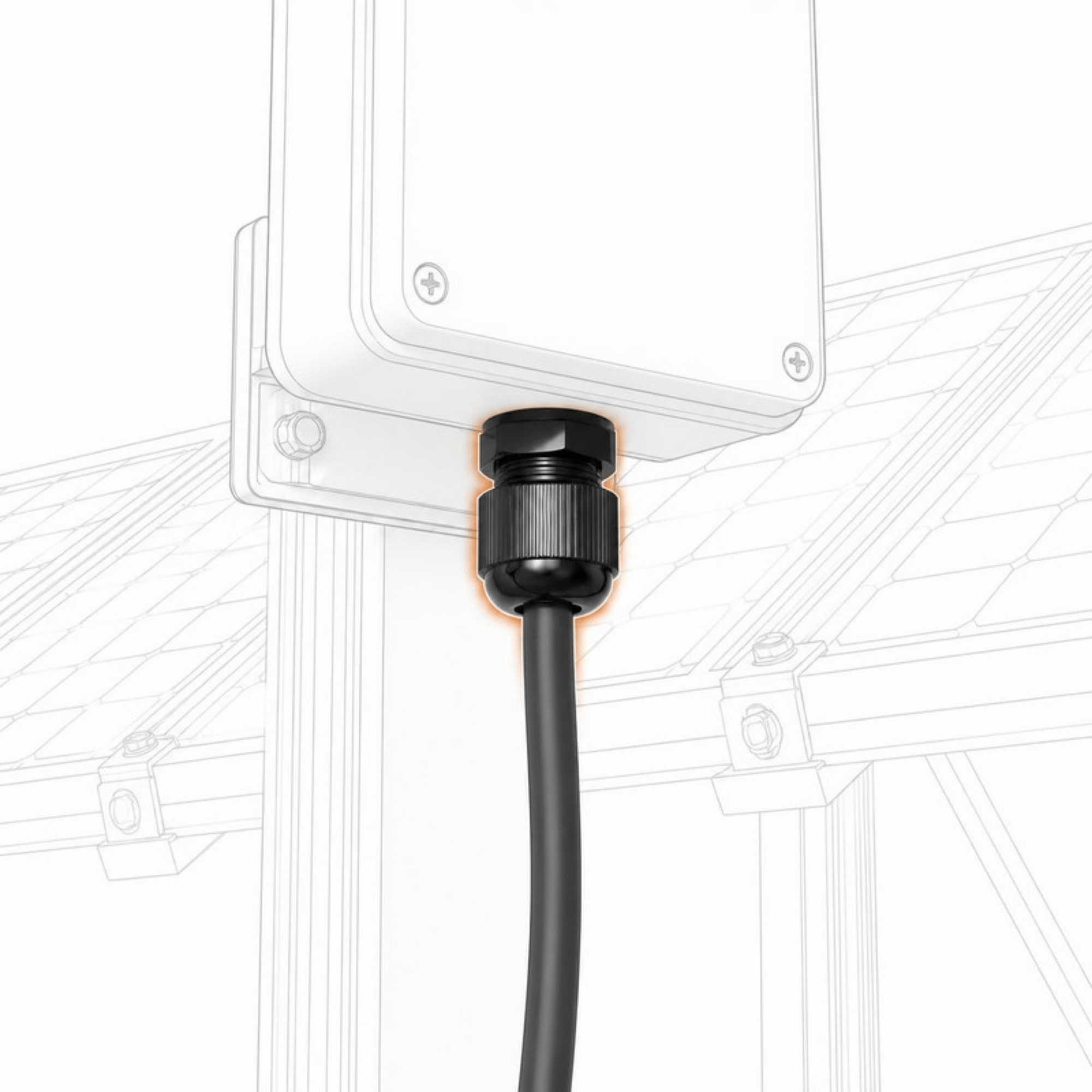

- PV combiner boxes & micro-inverter feeds
- EV charge posts & battery-swap cabinets
- PLC enclosures, VFD drives & pump skids
- LED floods / high-bays & outdoor security cameras
- Marine / RV cable lead-ins through GRP or aluminium skins
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CT-NPT-34 |
| Thread Size | ¾″ NPT (ANSI/ASME B1.20.1) |
| Cable Ø Range | 13 – 18 mm |
| Ingress Protection | IP-68 / NEMA 6P (5 bar, 30 min) |
| Body & Cap | Polyamide-6, UL-94 V-2, black RAL 9005 or grey RAL 7035 |
| Seal / O-ring | CR/NBR compression sleeve + EPDM flat O-ring |
| Temperature Range | −40 °C → +105 °C (−40 °F → +221 °F) |
| Pack Quantity | 50 pcs / bag |
| Main Dimensions (mm) | D1 30.9 • D2 24.2 • B1 13.8 • L1 19.2 • L2 36.7 • L3 27.4 |
60-Second Installation
- Drill or punch a ¾″ NPT knockout.
- Seat the supplied EPDM O-ring (use the sealing washer on thin sheet-metal).
- Hand-tighten the lock-nut until the gland body is immobile.
- Insert the cable and tighten the dome cap until snug—no wrench required.
