Rigid Conduit Body LB Series 1 - 1/4 " UL Threaded

Availability:
76 in stock, ready to be shipped
Original price $10.88 - Original price $10.88
Original price
$10.88
$10.88 - $10.88
Current price $10.88
Request Distributor or Volume Pricing
SKU 675-30004

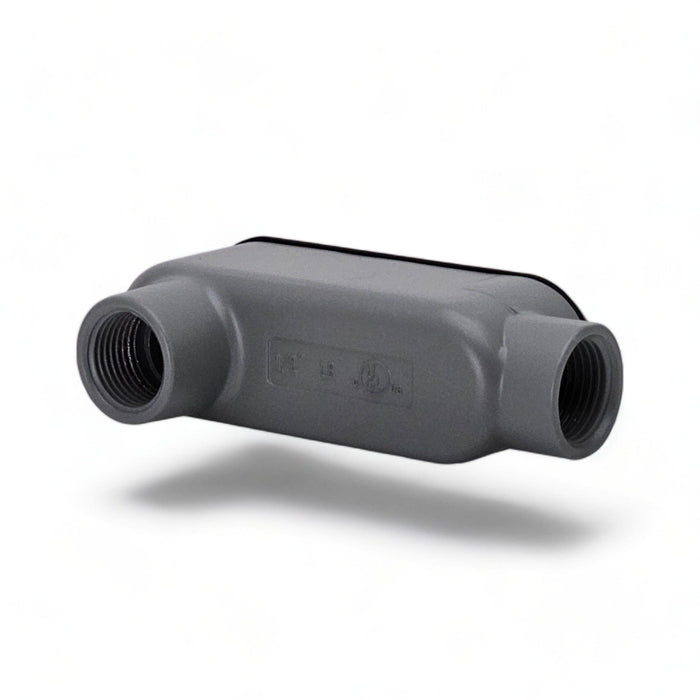

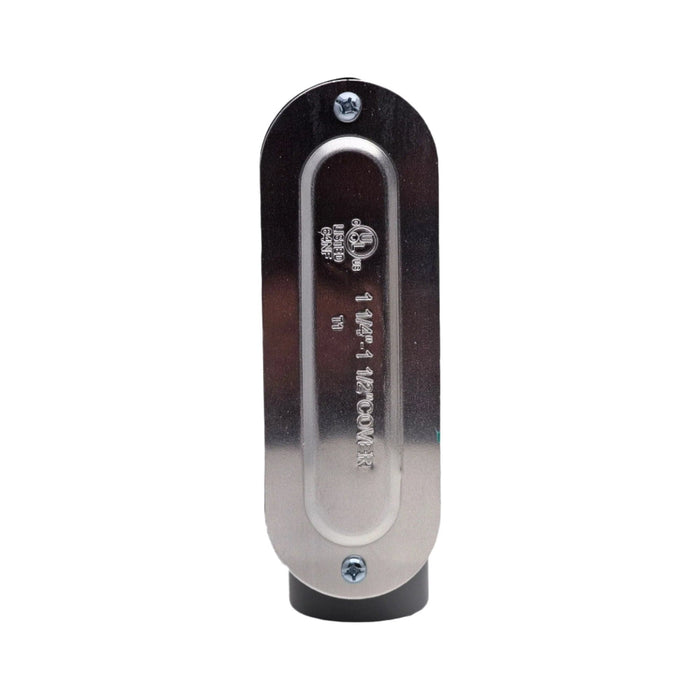

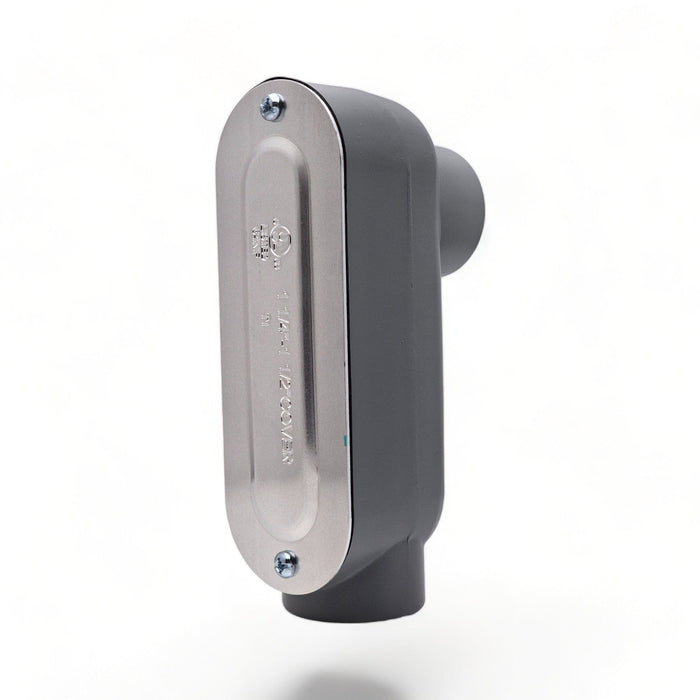

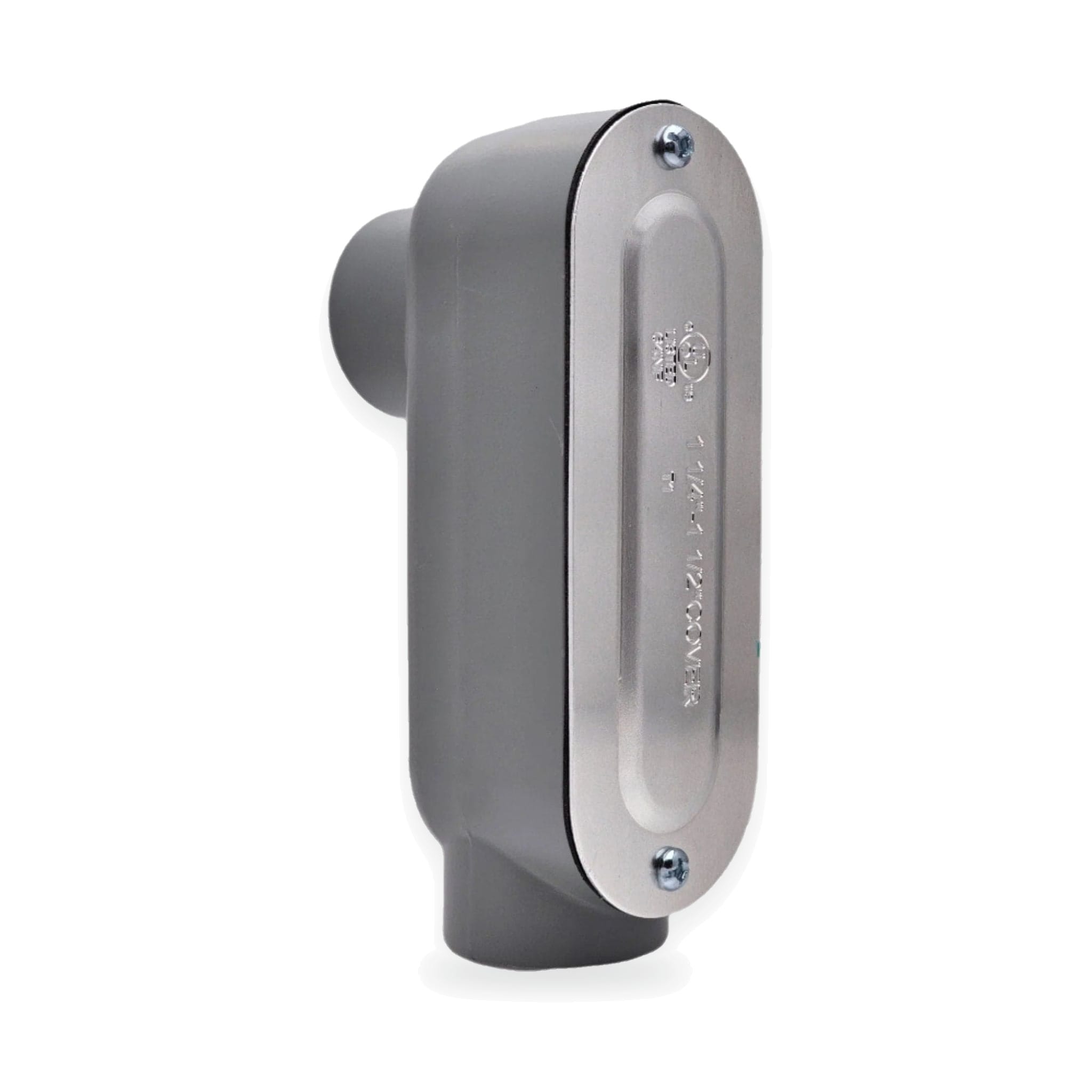

Rigid Conduit Body LB Series 1‑1/4″ – UL‑Listed, NEMA 3R

Upgrade every bend in your conduit run with the LB Series 1‑1/4‑inch rigid conduit body from Conversions Technology. Precision‑machined, powder‑coated, and UL Listed, this weather‑sealed fitting delivers effortless 90° wire pulls, splices, and taps for fast, code‑compliant installs indoors and out.

Why Electricians Trust Our LB Conduit Body

  • Industrial‑Grade Aluminum: Rust‑proof alloy body shrugs off rain, UV, and impact.
  • Threaded 1‑1/4″ NPT Hubs: Factory‑cut threads ensure leak‑free joins to RMC, IMC, and EMT adapters.
  • NEMA 3R + Powder Coat: Built‑in gasket and tough finish block moisture, dust, and corrosion.
  • UL & 2011 NEC Compliance: Meets the strictest U.S. safety standards for commercial, industrial, and residential jobs.
  • Roomy LB Cavity: Extra space for easy conductor bends and future pull‑throughs.
  • Ready‑to‑Install: Includes cover, neoprene seal, and stainless‑steel screws—no extra trips to the supply house.

Key Specifications

Series LB (90° Conduit Body)
Trade Size 1‑1/4″ (1.25 in / 32 mm)
Material Die‑cast aluminum, powder‑coated
Ingress Rating NEMA 3R (weather‑resistant)
Certifications UL Listed, 2011 NEC
Operating Temp –40 °F → +212 °F (–40 °C → 100 °C)
Package Includes Body, gasketed cover, mounting screws

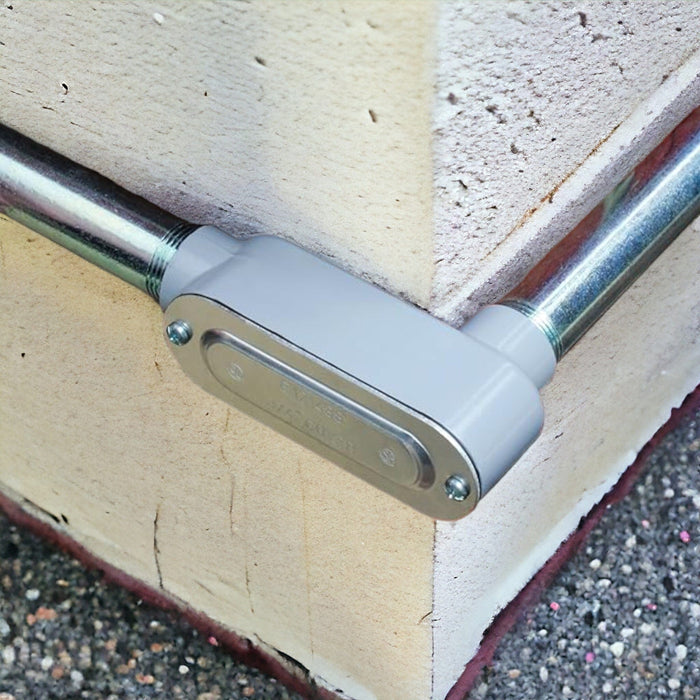

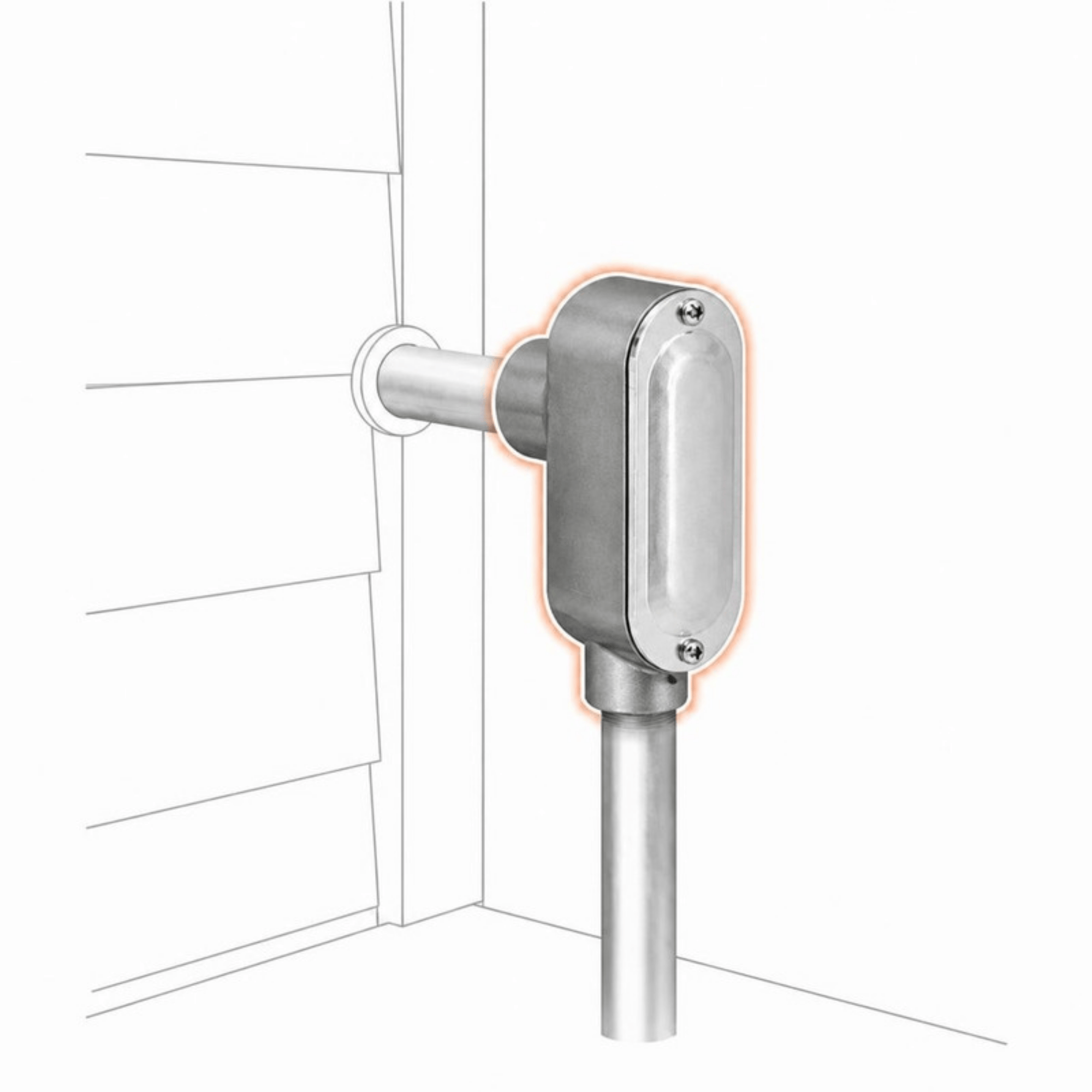

Where This LB Body Excels

  1. 90° turns in rigid metal conduit & IMC runs
  2. Outdoor service entrances and rooftop HVAC feeds
  3. Commercial lighting, parking‑lot poles, and signage
  4. Industrial automation lines needing quick maintenance access
  5. Residential garages, workshops, and generator hookups
