Type LL Rigid Conduit Body 3/4" NPT | UL Listed, NEMA 3R, Aluminum
Shipping calculated at checkout
SKU: 675-30022
488 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

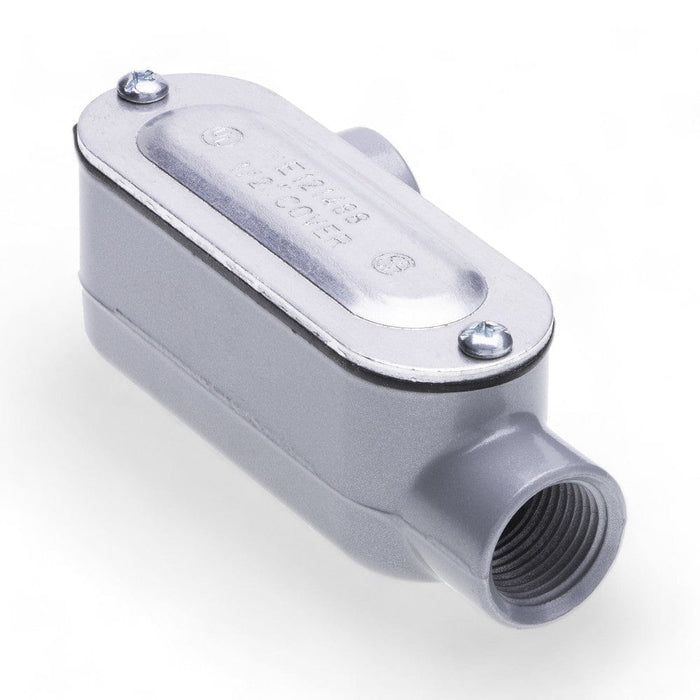

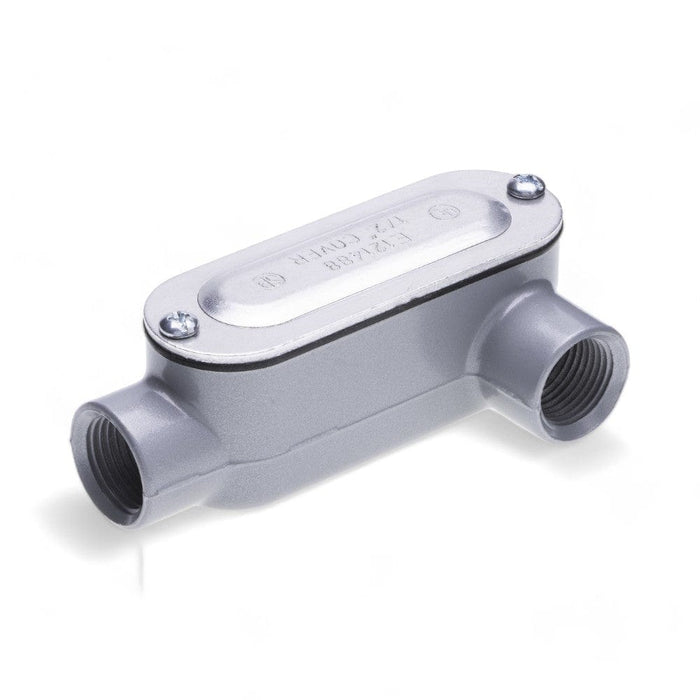

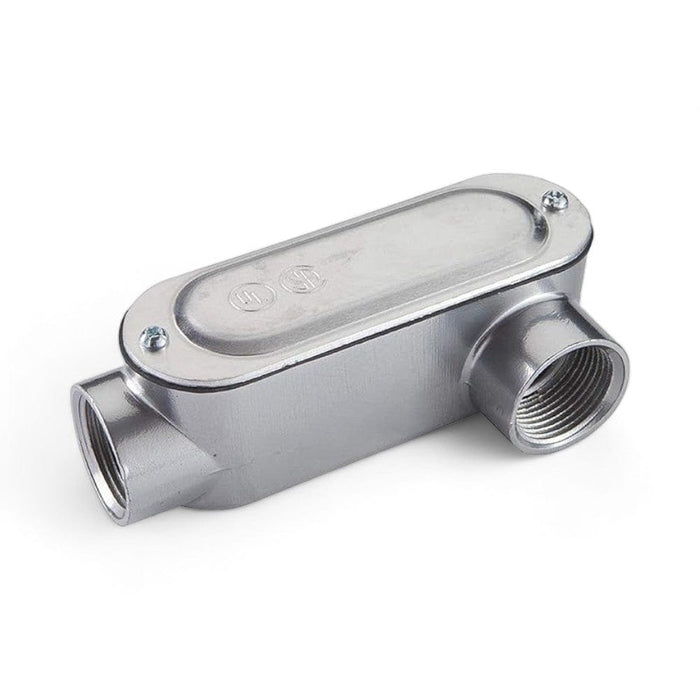

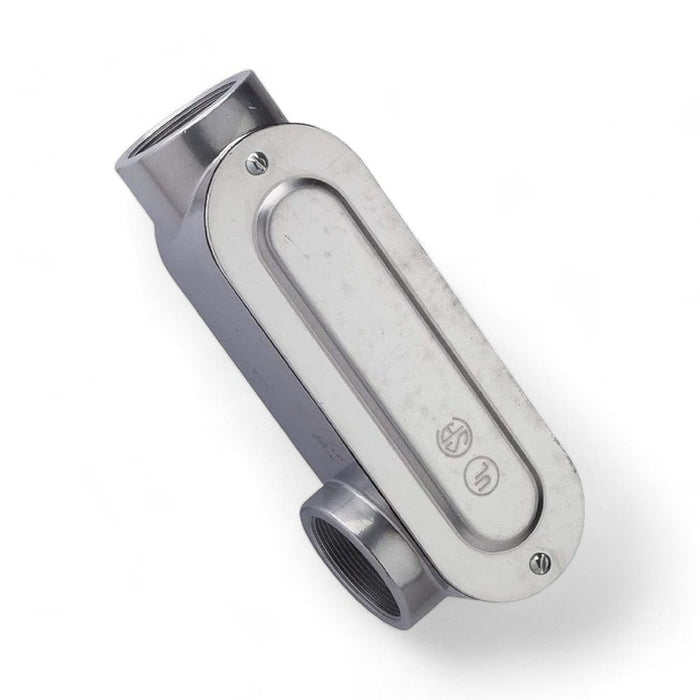

The LL Series 3/4-Inch Threaded Rigid Conduit Body is a Type LL (left/left) access fitting designed for 90° turns in rigid metal conduit (RMC) and intermediate metal conduit (IMC) runs. Engineered by Conversions Tech's US engineering team and built to specification by certified partner factories, this conduit body provides a service entry point for wire pulling, splicing, and branch-circuit taps in residential, commercial, and industrial electrical installations. The side-entry configuration maximizes conductor accessibility for maintenance while maintaining a compact footprint in crowded raceway systems.
Specifications
- Thread Size: 3/4 in. (19 mm) NPT
- Configuration: Type LL (Left/Left)
- Body Material: Die-cast aluminum
- Cover Material: Die-cast aluminum with gray polyester powder coat finish
- Gasket Material: Neoprene
- Ratings: UL Listed, NEMA 3R, RoHS compliant
- Standards: 2011 NEC, ANSI C80.1
Cross-Reference
This Type LL conduit body is equivalent to Crouse-Hinds and Appleton Form LL fittings, providing the same 90° side-entry configuration and NEMA 3R weatherproofing at lower cost for budget-conscious specifications.
FAQ
What is the difference between Type LL and Type LB conduit bodies?
Type LL provides two left-hand entries for 90° turns where both conduits approach from the same side of the fitting. Type LB provides a back entry with a side exit. Verify your raceway layout against NEC 314.16 box fill calculations before specifying.
Is this conduit body suitable for wet locations?
The NEMA 3R rating and factory-installed neoprene gasket provide protection against falling rain, sleet, and external ice formation. For direct water spray or submersion applications, verify additional environmental ratings with your local AHJ.
Can I use this with EMT or PVC conduit?
The 3/4 in. NPT threads are designed for rigid metal conduit (RMC) and intermediate metal conduit (IMC) per ANSI C80.1. EMT requires compression or set-screw connectors; PVC requires threaded adapters. Do not force incompatible threads.
