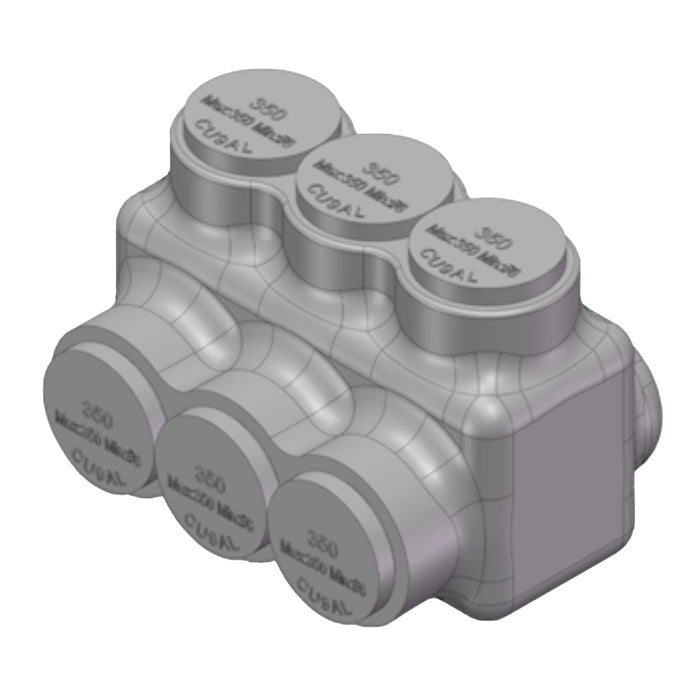

Insulated Tap Connector 6 AWG Minimum to 350 kcm (3 Port)
Shipping calculated at checkout
SKU: 62049
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Technology is a mechanical connector designed specifically for grounding applications within electrical systems. Its robust design ensures reliable connectivity for copper conductors, promising secure and efficient grounding setups.
Product Overview
The Conversions Technology represents a robust grounding connector engineered for dependable electrical applications. Tailored to accommodate specific conductor sizes, it ensures secure and efficient grounding setups within diverse electrical systems. With a durable build and adherence to industry standards, this connector promises reliable performance and steadfast connectivity.
Specifications
- Conductor Size Range: 6 AWG Minimum to 350 kcmil Maximum
- Conductor Material: Copper/Aluminum
- Type: Grounding Connector
- Voltage Rating: 600 Volts
- Insulation Material: High Dielectric Strength Plastisol
- Ports: 3
- Cable Entry: 1 Side Entry
- Current Rating: 350 Amperes
- Temperature Rating: 90 Degrees Celsius, -45 Degrees Celsius (Cold)
Uses and Cases
- Grounding in Electrical Panels
- Electrical Equipment Bonding
- Power Distribution Systems
- Industrial Machinery Grounding
- Renewable Energy Installations
- Telecommunications Grounding
- Substation Grounding
- Transformer Connections
- Lightning Protection Systems
Item Features
- Conductor Size Range: Accommodates conductors from 6 AWG to 350 kcmil.
- Conductor Material: Compatible with both copper and aluminum conductors.
- Voltage Rating: Suitable for systems up to 600 Volts.
- Insulation Material: Utilizes high dielectric strength Plastisol for insulation.
- Port Configuration: Equipped with three ports for connections.
- Cable Entry: Offers one side entry for cable installation.

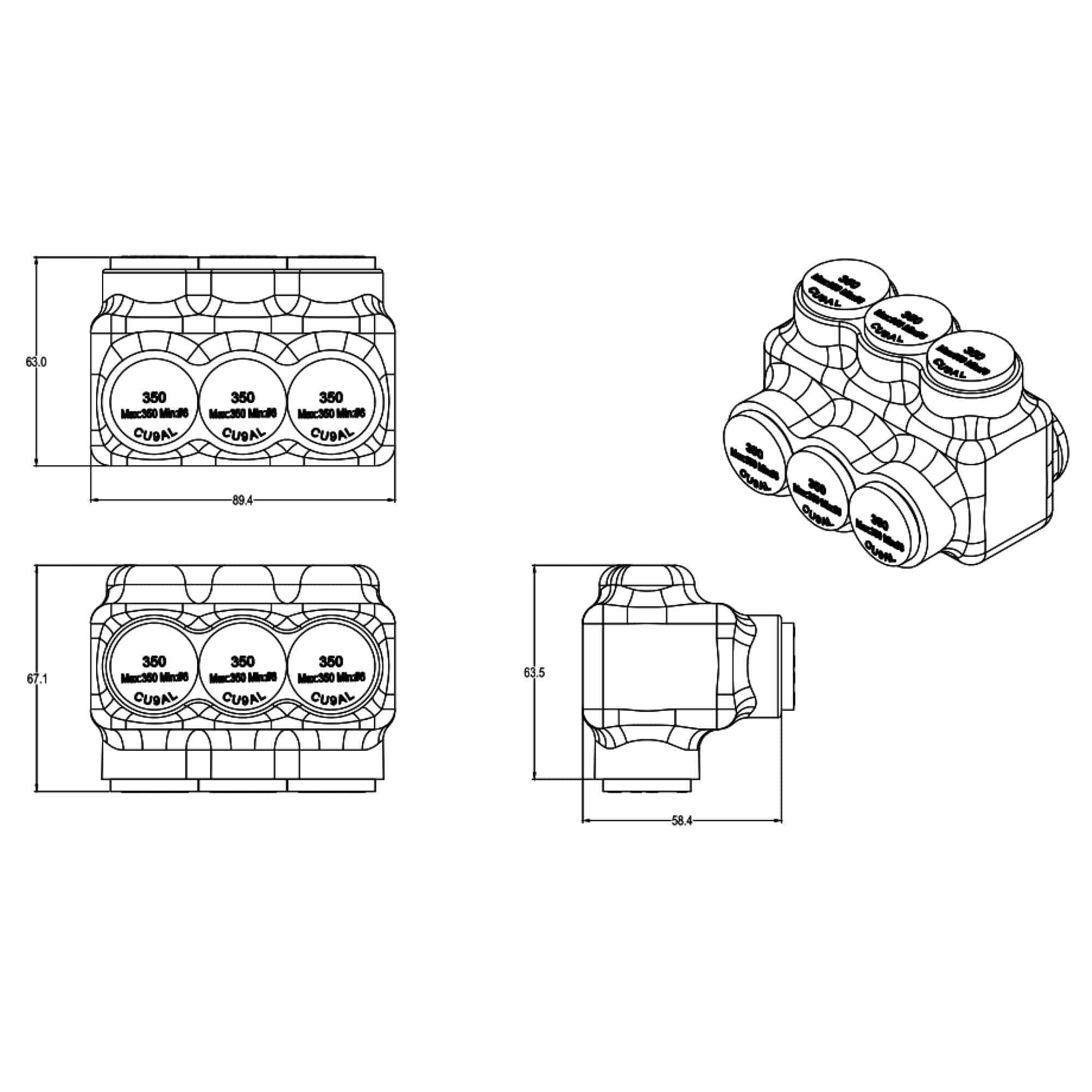

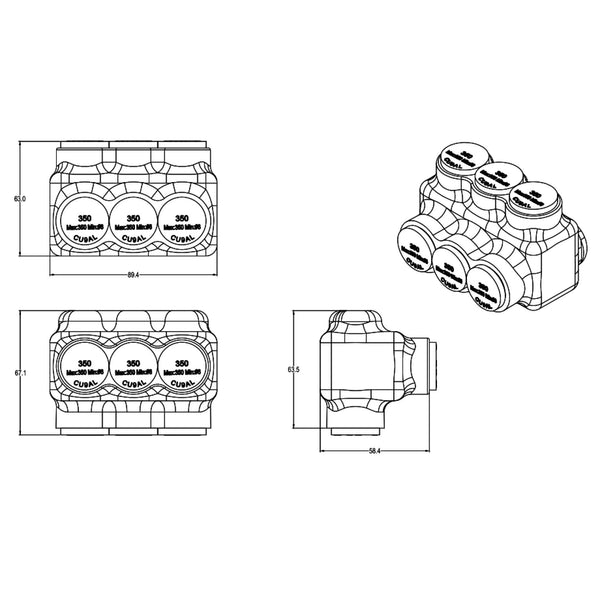

Specification Sheet
