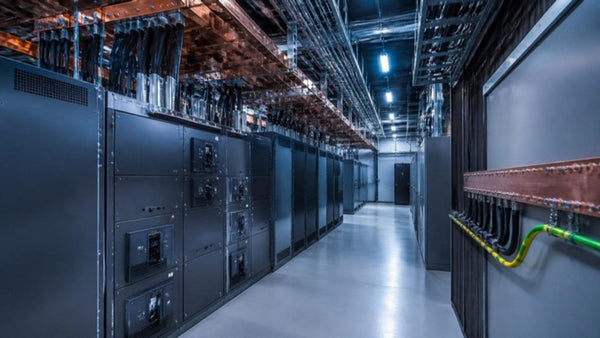

Data center electrical room with switchgear, overhead busway and copper ground bar Data center electrical room with switchgear, overhead busway and copper ground bar

Powering a Data Center: Connectors, Grounding and Power Distribution Hardware From Utility Service to Rack

A hyperscale or colocation build runs on tens of thousands of electrical terminations. Every one sits between the utility service and the server: lugs on switchgear and generator paralleling gear, battery connections in the UPS room, taps on busway and remote power panels, two hole lugs on the telecom ground bar, and compression connectors buried in the ground ring. This guide follows the power path through a data center and lists the connector, grounding and distribution hardware each stage needs. It also gives the spec points the engineer of record will check and the Conversions Tech parts that cross to the brands already named in most specs.

The power path, stage by stage

Stage What gets terminated Hardware Typical spec basis
Utility service and MV yard Substation grid, fence and transformer grounding, service conductors Irreversible compression C taps, Figure 6, Figure 8, transformer bushings and spade terminals, ground rods IEEE 80, IEEE 837, UL 467, ANSI C57.12
Main switchgear and generator paralleling Parallel sets of 500 to 750 kcmil feeders, bus ties, neutral and ground Two hole long barrel compression lugs on NEMA spacing, AL9CU mechanical lugs for aluminum feeders UL 486A/B, NEC 110.14, NEMA CC1 hole patterns
UPS and battery room Battery strings, DC bus, UPS input and output, bypass Copper battery lugs, flex and DLO lugs, busbars and distribution blocks, compression splices UL 486A, manufacturer torque and crimp charts
Busway, PDUs and RPPs Tap boxes, panel mains, feeder taps One hole compression lugs, insulated multi taps, neutral and ground bars UL 486B, NEC 240.21 tap rules
White space and telecom grounding Rack bonding, TGB and TMGB bars, mesh bonding network Two hole lugs, 90° flag lugs, grounding bushings TIA-607-D, BICSI 002, NEC 250
Grounding electrode system Ground ring, rod beds, Ufer, building steel Compression C taps and rod connectors, rod, pipe and rebar clamps NEC 250.52, 250.64(C), UL 467, IEEE 837
Raceway Feeder and branch conduit through MEP spaces EMT fittings, rigid and IMC compression fittings, conduit bodies NEC 344, 358, UL 514B
Network layer Horizontal copper, fiber trunks, patching Cat6 and Cat6A bulk cable, MPO trunks and fiber patch cables, keystone jacks TIA-568, TIA-942

Spec points that come up on every data center submittal

Two hole lugs on switchgear and ground bars

Two hole lugs stop the termination from rotating as the bolt is torqued and through years of thermal cycling. That is why most switchgear, PDU and telecom ground bar specs call for them. Match the hole spacing to the bus drilling. Common centers are 5/8, 3/4 and 1 in on panel bus and ground bars, and 1 3/4 in NEMA spacing on switchgear. Long barrel lugs give two crimps per barrel and are the usual choice on 4/0 and larger.

Copper versus aluminum feeders

Many data center feeders now run in aluminum to save cost and weight. Aluminum conductors need a lug listed for AL (AL9CU dual rated mechanical lugs or aluminum compression lugs), oxide inhibitor on the strands, and the torque on the lug label. Tin plated copper compression lugs suit copper conductors and give a stable contact surface on plated bus.

Compression instead of exothermic in an operating building

Irreversible compression grounding connectors install with a hydraulic tool and a die, with no open flame, no hot work permit and no shutdown of fire detection. IEEE 837 qualified compression is accepted for buried and concrete encased connections, and the die index stamped on the connector lets the inspector verify every crimp after the fact. See where, how and why to use irreversible compression.

Die index and color code for QA

Our compression lugs and splices follow the color keyed die index system used across the industry (for example 4/0 is index 54, purple). The crew needs one die chart, and QA checks the embossed index on each crimp. Compression lug die chart.

Telecom bonding

TIA-607-D calls for listed two hole compression lugs on the TMGB and TGBs, with bonding conductors sized to length. 90° flag lugs make cleaner landings on ladder rack and cabinet bonding points where a straight lug would kink the conductor.

Cross references for common data center specs

Named in the spec Part type Conversions Tech line
Burndy YA-2N series Two hole copper compression lug CT two hole lug series
Panduit LCD / LCDX Two hole copper compression lug CT two hole lug series
Burndy YA-L-90 90° flag lug CT 90° flag lugs
Burndy HYGROUND YGHC / YGHP / YGHR Irreversible compression grounding CT 610 compression grounding
NSI Polaris IPL / Burndy UNITAP BIT Insulated multi tap CT 610 insulated taps
RACO / Bridgeport rigid compression Threadless rigid and IMC fittings CT RT / RTC series

Look up any other part number in the cross reference hub. Crosses are by published rating and conductor range, so verify fit against the project specification.

How data center contractors buy from us

  • One PO for the termination and grounding BOM instead of six brand line items across several distributors.
  • Submittal packages with cut sheets, UL listing data and cross reference tables for the engineer's review.
  • Staged delivery to the site or your yard by phase, with same-day shipping on in-stock items.
  • Trade accounts with net terms and project pricing. Apply here.

More on this market: Data center grounding and power distribution · Compression lugs for data centers · Utility and public power supply. Send a BOM to CS@conversionstech.com or call (307) 206-0534 for a line by line cross and quote.
