C Conduit Body 3/4 in. Threaded, Rigid/IMC, Copper-Free Aluminum, with Cover & Gasket | 675-30012
Shipping calculated at checkout
SKU: 675-30012
499 in stock
Open here
Goes with

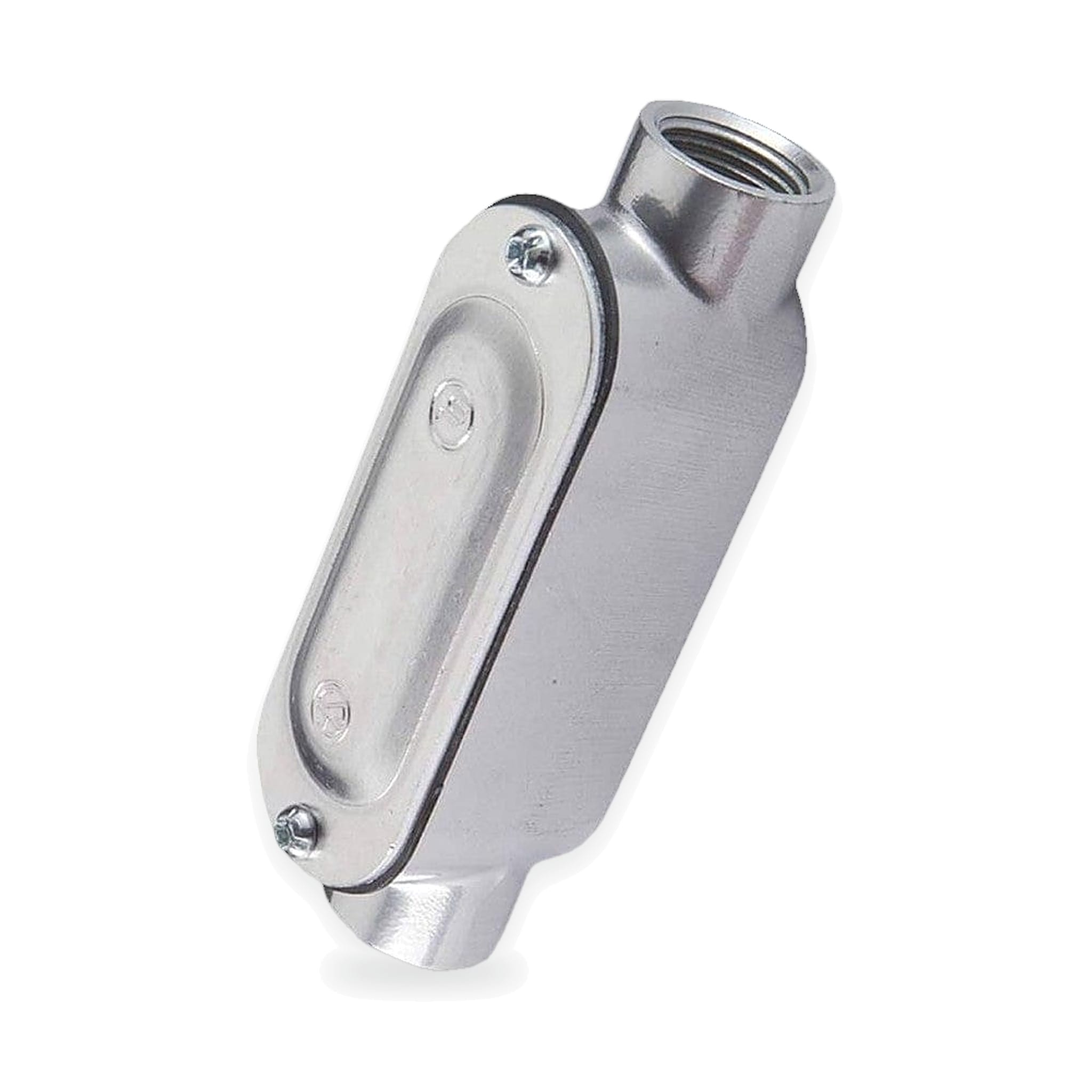

The Conversions Tech Type C 3/4" threaded conduit body is a straight-through pull point for a straight conduit run. NPT-threaded hubs for rigid (RMC) and IMC conduit. Cast from copper-free aluminum, with a removable cover and gasket.
Specifications
| Body type | C conduit outlet body |
| Trade size | 3/4 in |
| Hub / thread | Threaded (NPT) |
| For use with | Rigid (RMC) and IMC |
| Material | Copper-free die-cast aluminum |
| Cover & gasket included | Yes — cover + gasket |
| Rating | NEMA 3R, UL Listed, CSA Certified |

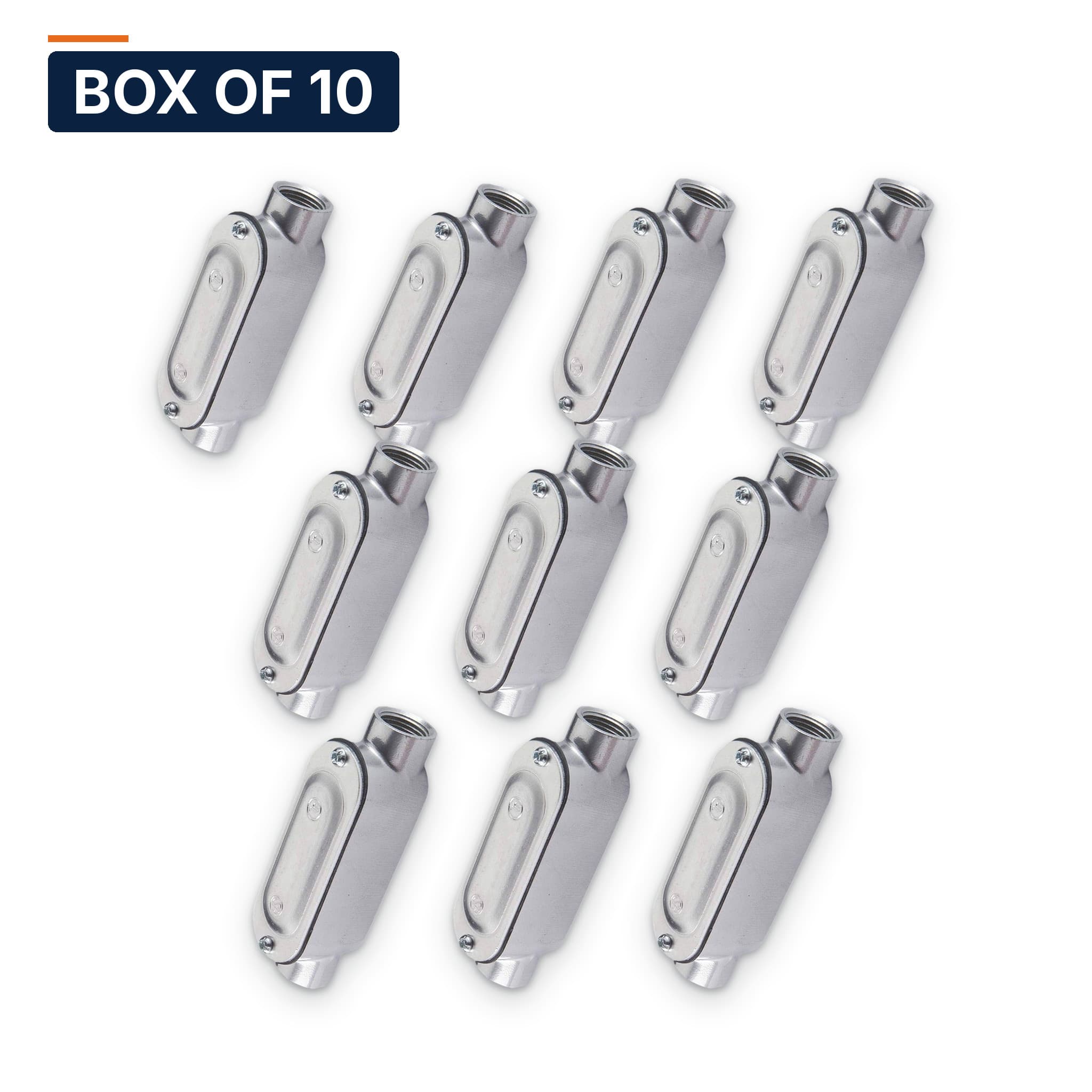

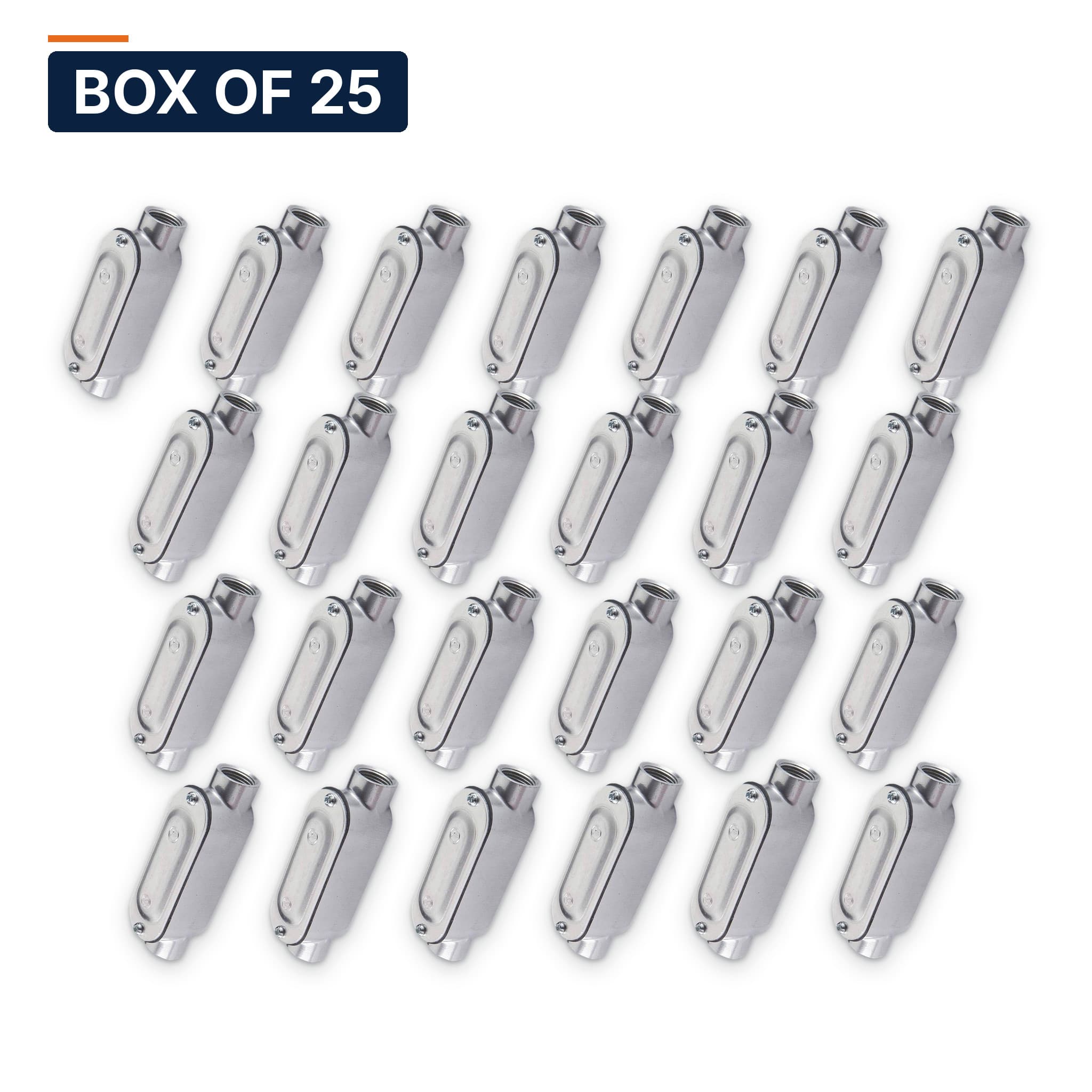

| Part number | 675-30012; packs: Each / Box of 10 / Box of 25 |
LB vs LL vs LR — which one do I need?
Hold the body upright with the straight hub pointing down and the cover facing you. The letter tells you where the second hub exits:
- LB — out the back, directly opposite the cover. The usual choice for going through a wall.
- LL — out the left side.
- LR — out the right side. (LL and LR are mirror images.)

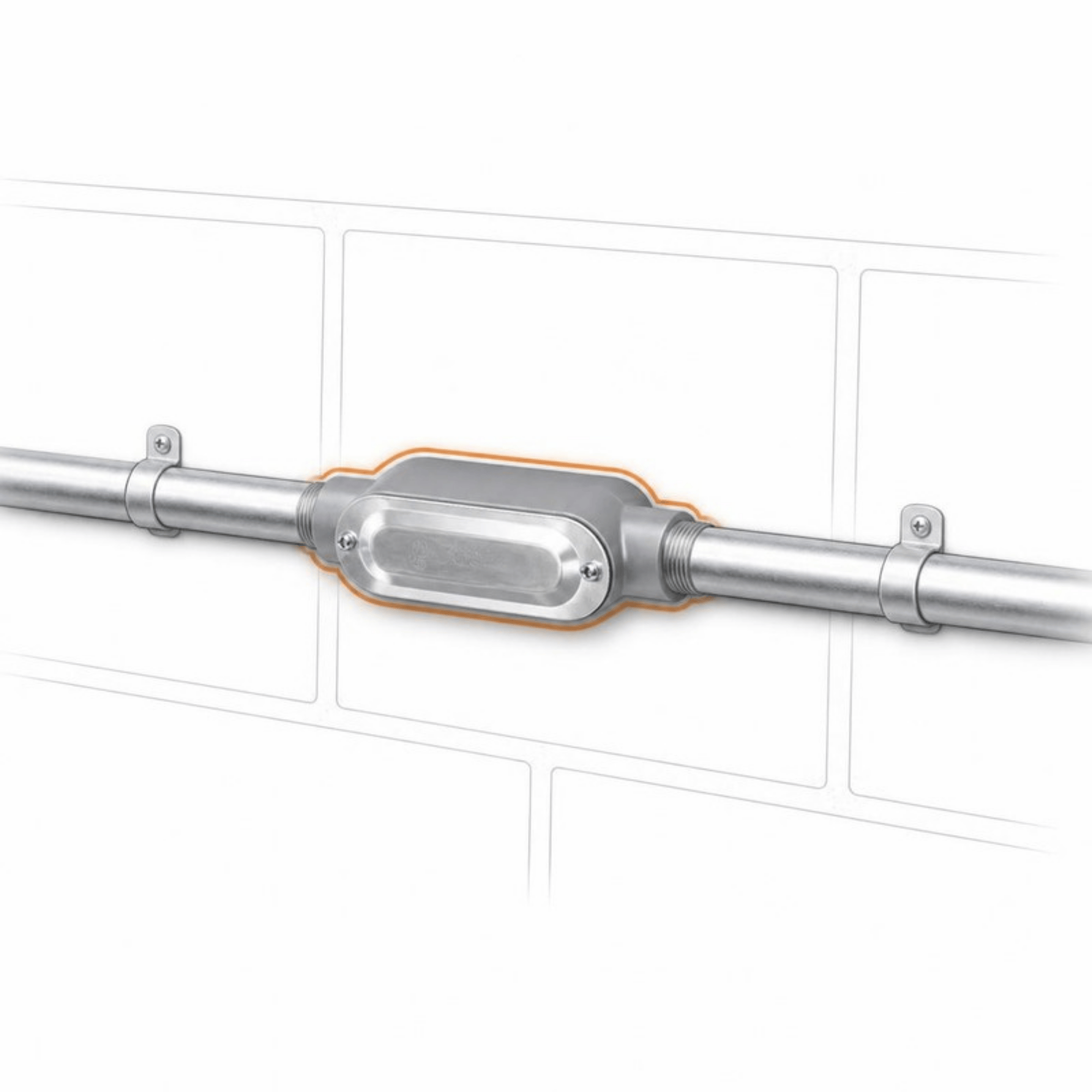

- C — straight through, for a pull point on a straight run. T — three hubs for a branch.
What you need to install it
- 3/4" rigid (RMC) or IMC conduit (not sold here)
- Rigid Conduit Nipple, HDG 3/4"x1-1/2"
- 3/4 in. Rigid Conduit Coupling, Threaded, Steel
- 3/4 in. Conduit Locknut, Steel
- 3/4 in. Insulated Grounding Bushing, Die-Cast Zinc
- 3/4 in. Rigid One-Hole Strap, Steel
- For the pull: fish tape and pulling lubricant (not currently stocked).
Cross-reference (by size and type)
| Brand | Type C 3/4" |
|---|---|
| Crouse-Hinds (Eaton) | C27 |
| Appleton (Emerson) | C27 |
| O-Z/Gedney (ABB) | C27 |
| Conversions Tech | 675-30012 |
Competitor names and part numbers are trademarks of their respective owners, referenced for size compatibility only. Covers and gaskets are manufacturer-specific and don't interchange between brands.
Browse all conduit bodies, or see the cross-reference and bulk-quote page.
