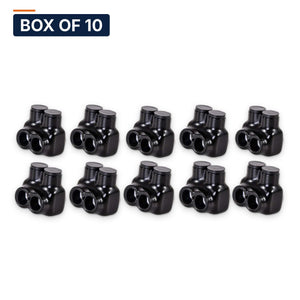

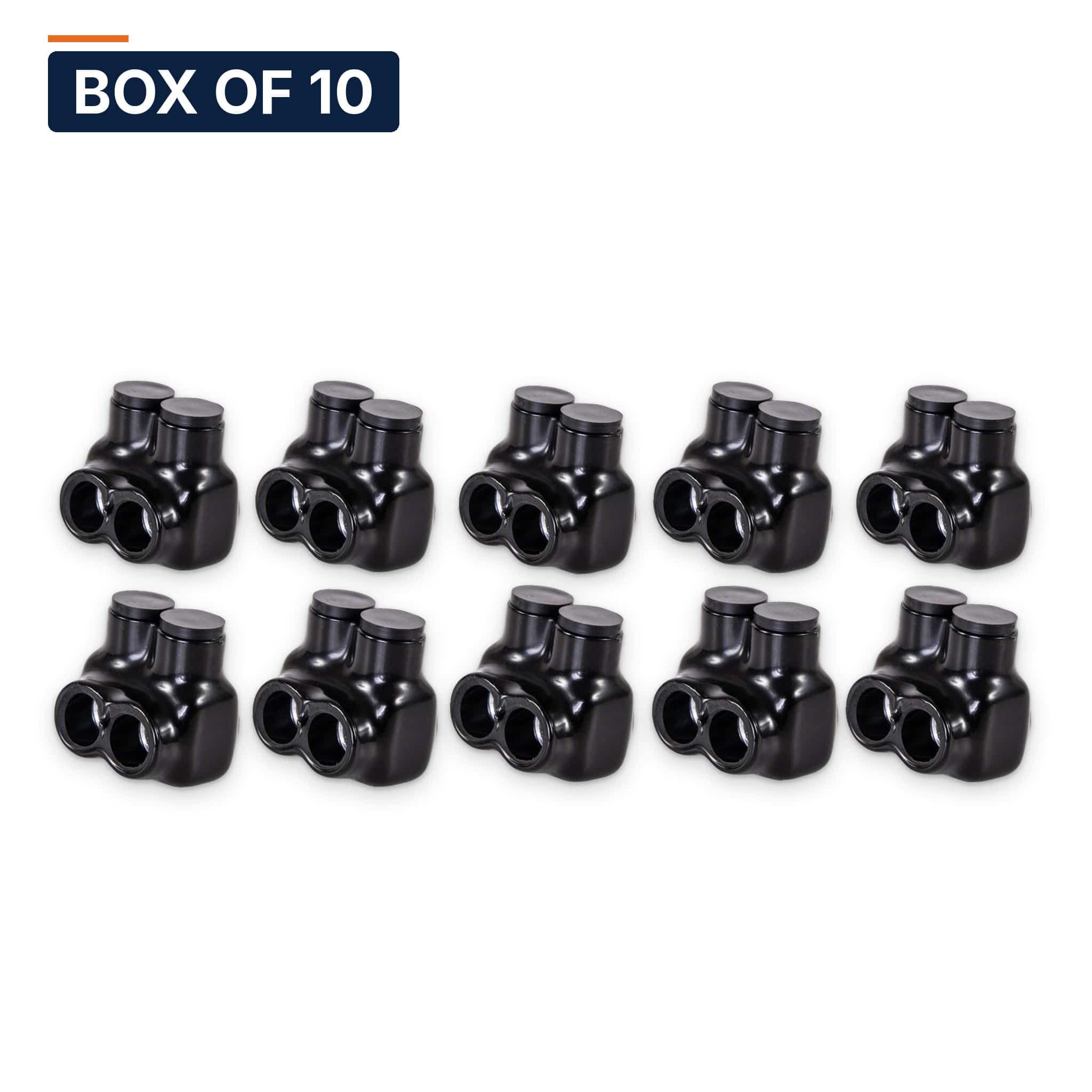

Insulated Tap Connectors – 2-Port, Single-Side Entry (6 AWG–350 MCM)
Clean, code-ready line-side or feeder taps with a compact single-side entry design. UV-resistant plastisol body, pre-filled oxide inhibitor, and removable port plugs for fast, professional installs.
Key Features
- 2-Port, Single-Side Entry — quick, tidy routing in tight panels and meter/main enclosures.
- Wide Range — accepts conductors from 6 AWG to 350 MCM (see variant/size selection).
- Pre-Filled Oxide Inhibitor — reduces galvanic corrosion, stabilizes long-term resistance.
- Removable Port Plugs — keeps debris and moisture out before termination.
- UV-Resistant Plastisol Insulation — smooth, rounded profile for safe handling; abrasion & chemical resistant.
- Set-Screw Termination — high-pressure, low-resistance connections with hardened steel screws.
- Time-Saving — no taping required; install and close the cover.
- NEC 230.46 Use-Case — for line-side connections when used with listed & labeled devices; verify with local AHJ.
Technical Specifications
| Conductor Range | 6 AWG – 350 MCM (see product size chart) |
|---|---|
| Ports / Entry | 2 ports, single-side entry |
| Body Material | Tin-plated aluminum connector body (set-screw type) |
| Insulation | UV-resistant plastisol, rounded ergonomic profile |
| Filling | Pre-filled oxide-inhibiting compound in ports |
| Hardware | Hardened steel set screws (hex drive) |
| Environmental | UV / abrasion / chemical resistant jacket; removable dust/moisture plugs |
| Applications | Service equipment line-side taps, meter/main, panelboards, switchgear, PV & ESS combiner taps |
| Standards / Code | Supports NEC 230.46 use-case with listed & labeled devices; consult local AHJ |
Install Notes
- Verify conductor size falls within the connector’s marked range (6 AWG–350 MCM).
- Strip insulation per spec; keep strands intact. Do not pre-twist.
- Insert conductor fully; tighten set screw to manufacturer torque (see spec sheet).
- Leave protective plugs on unused ports until termination is complete.
- Inspect for full engagement and proper strain relief before energizing.
Why Conversions Tech
Built for electricians who value speed and reliability. Pair with our Insulated Tap Connectors, Mechanical Connectors, and Grounding lines for a complete, code-smart system.
FAQs
Is this connector okay for copper and aluminum conductors?
The tin-plated aluminum body with oxide inhibitor is designed for stable Cu/Al terminations. Always match conductor range and follow torque specs on the label/spec sheet.
Does this satisfy NEC 230.46?
NEC 230.46 requires listed and labeled devices for service equipment line-side connections. This product supports that use-case when installed per listing and local AHJ requirements. Always verify with your inspector.
Do I still need to tape the connection?
The molded plastisol insulation removes the need for post-wrap taping in typical installations. Follow site practice and local code guidance.
What torque should I use?
Use the manufacturer-specified torque printed on the product label or in the spec sheet. Re-check after initial set for best results.
